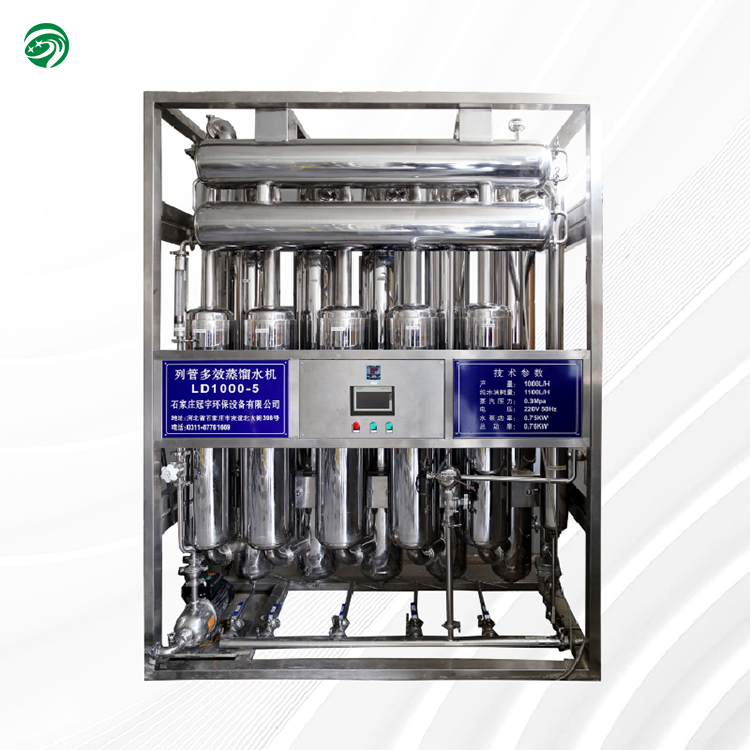

Pharmaceutical tube distilled water machine 1000L/H single tube plate

The product consists of 5 evaporator, 5 pre-heater, 5 vapor-liquid separator, 2 condenser, feed pumps, filters, control valves, flow meter, frame, piping and controller.

1. Evaporator

Using tube falling film evaporation technology，to ensure Reverse Osmosis Wate（r

Pure water）uniform

distribution in the inner wall of each evaporation tube to form a water film evaporation.

The effect of pure steam for the next evaporator to provide heat, its complete evaporation, liquefied form distilled water.

2. Vapor-liquid separator

Using steam and water split four separation techniques(Steam and water centrifugation, underneath rotary vane clapboard separation, wire mesh capture water droplet separation, upper rotary vane clapboard separation) to ensure distilled water heat source and endotoxin content lower.

3. Preheater

Using U-tube exchange heat, high heat exchange efficiency, good mechanical performance, long service life.

4. Condenser

Unique double condenser design, special made multiway reciprocating structure,heat transfer fully, no need special cooling water, distilled water can reach the required temperature

5. Piping

Pipeline design has no storage, no dead ends, low equipment failure rate, pipeline to connect using new type sanitary clamp connection both inside and outside mirror polish,neat appearance,operate quickly and conveniently.

6. Configuration

Adjusting valve,Automatic compensation valve,throttle valve,conductivity meter, temperature meter selected domestic and overseas high-tech products, Beautiful appearance, complete functions

7. Water Source

The equipment required the water source must be pure water or reverse osmosis water, any natural water or city water is infeasible.
