| Product model | LD20-3 |
| Distilled water production | 20L/H |
| Steam consumption | 4.5Kg/H |
| Purified water consumption | 25-30L/H |
| Pure water conductivity requirements | 10us/cm |
| Distilled water conductivity | <1us/cm |
| Steam pressure | 0.2Mpa |
| Multi-stage system power | 0.75KW |
| Overall dimensions length*width*height | 1380*350*1400mm |

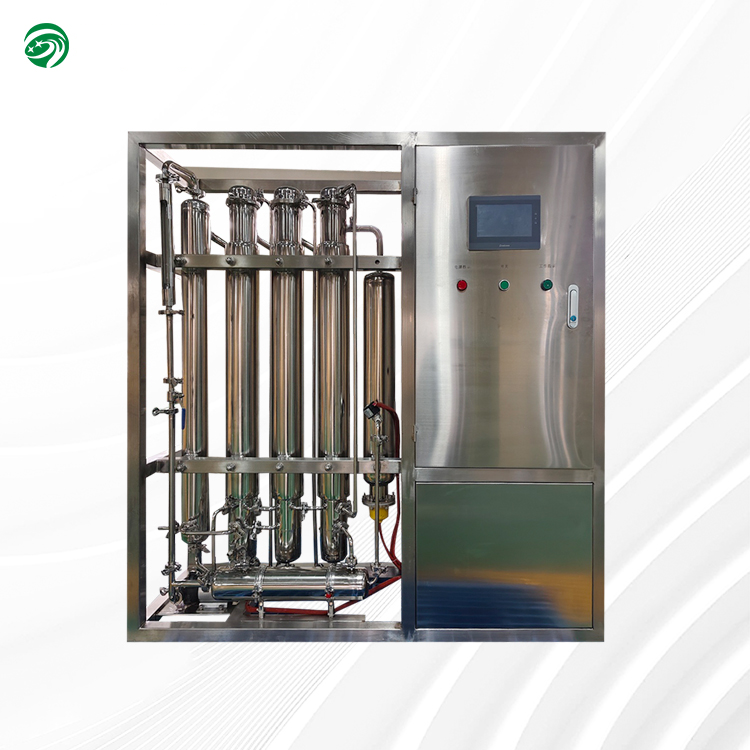

The distilled water machine for laboratory is a high-tech product developed and produced by Guanyu Company relying on its own comprehensive strength, combining advanced foreign technologies from Finland, the United States, Italy, etc., and cooperating with Professor Lin Zaiqi, a famous domestic steam expert from Dalian University of Technology (the inventor of domestic multi-effect distilled water machine).
Water quality requirements: The requirements for pure water are relatively low, and distilled water that meets the pharmacopoeia standards can be produced below single-stage reverse osmosis (10us/cm).
Steam saving: Save steam, effectively utilize resources, and save 10%-20%
Water saving: No additional cooling water is required, saving you precious purified water resources
Fast water output: Qualified water can be produced within 5-10 minutes after starting the machine.
High water quality: water quality conductivity is below 0.6us/cm, in line with the national standard ≤2us/cm; bacterial endotoxin <0.125Eu/m, in line with the national standard ≤0.25Eu/m;
Automatic control of distilled water quality: PLC intelligent control, the instrument continuously displays the current distilled water outlet conductivity, and can set the qualified conductivity value, unqualified distilled water automatically switches to discharge, can achieve full automatic unattended production, water shortage, full water, low pressure, medium pressure, high pressure automatic alarm, start, shut down, pressure reduction, protection, start and other automatic control.
Four effects in one: distilled water machine + pure water machine + electric steam generator + heat exchanger
Widely applicable to various laboratory scenarios such as experiments, testing, and testing, it is an indispensable assistant for scientific researchers and helps the smooth progress of scientific research
| Product model | Distilled water output L/H | Steam pressure Mpa | Steam consumption Kg/H | Purified water consumption L/H |
| LD20-3 | 20 | 0.2 | 4.5 | 25-30 |
| Conductivity requirement of pure water us/cm | Conductivity of distilled water us/cm | Multistage pump power kw | Dimensions length*width*height |
| 10 | <1us/cm | 0.75KW | 1380*350*1400 |
