| Product model | LD20-3 |
| Distilled water production | 20L/H |
| Steam consumption | 4.5Kg/H |
| Purified water consumption | 25-30L/H |
| Pure water conductivity requirements | 10us/cm |
| Distilled water conductivity | <1us/cm |
| Steam pressure | 0.2Mpa |
| Multi-stage system power | 0.75KW |
| Overall dimensions length*width*height | 1380*350*1400mm |

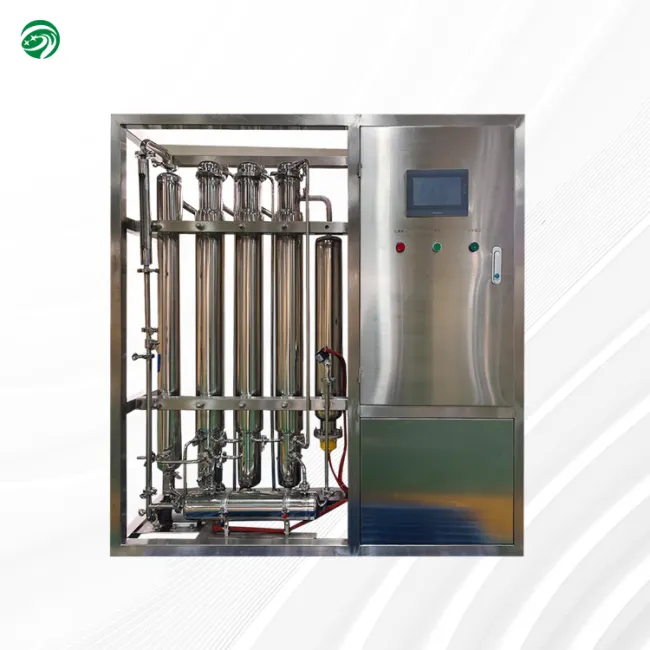

A high-tech distilled water device dedicated to laboratories, developed by Guanyu Company with its own strength, integrating advanced technologies from Finland, the US, Italy, etc., and cooperating with Professor Lin Zaiqi (a steam expert from Dalian University of Technology, inventor of domestic multi-effect distilled water machines).
Low Pure Water Requirement: Single-stage reverse osmosis (10μs/cm) or below can produce pharmacopoeia-standard distilled water;
Steam Energy Saving: 10%-20% steam saving, efficient resource utilization;
No Cooling Water Needed: Saves precious purified water;
Fast Water Production: Qualified water obtained within 5-10 minutes after startup;
High-Purity Water: Conductivity and endotoxin are better than national standards (conductivity <0.6μs/cm, endotoxin <0.125Eu/m);
Intelligent Automatic Control: PLC quality control, real-time conductivity display, qualified value setting, automatic discharge of unqualified water; fully automatic unattended operation, multi-status alarm and automatic start-stop control;
Four-Function Integration: Includes functions of distilled water machine, pure water machine, electric steam generator and heat exchanger.
Widely suitable for laboratory scenarios like experiments and testing, it is a necessary assistant for researchers and ensures the smooth advancement of scientific research.
| Product model | Distilled water output L/H | Steam pressure Mpa | Steam consumption Kg/H | Purified water consumption L/H |
| LD20-3 | 20 | 0.2 | 4.5 | 25-30 |
| Conductivity requirement of pure water us/cm | Conductivity of distilled water us/cm | Multistage pump power kw | Dimensions length*width*height |
| 10 | <1us/cm | 0.75KW | 1380*350*1400 |
