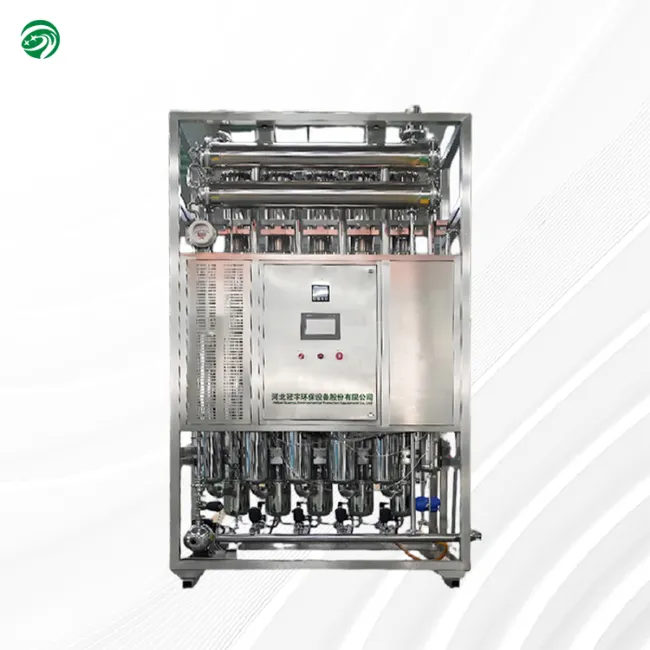

200L/H tubular distilled water equipment for pharmaceutical applications

Evaporator: Utilizes tubular falling-film evaporation technology, which guarantees uniform distribution of feed water on the inner wall of each evaporation tube to form a water film for evaporation. Pure steam from the upper effect supplies thermal energy to the lower-effect evaporator, completing the evaporation and liquefaction process to produce distilled water.

Gas-liquid separator: Employs split-type four-stage gas-water separation technology (centrifugal gas-water separation, lower rotating blade baffle separation, wire mesh droplet capture, upper rotating blade baffle separation). This secures lower heat source interference and endotoxin content in distilled water, and has relatively low pure water requirements — single-stage reverse osmosis (≤10μs/cm) or below can generate distilled water meeting pharmacopoeia standards.

Preheater: Adopts U-tube heat exchange structure, featuring excellent heat transfer efficiency, strong mechanical properties, and a long service life.

Condenser: Boasts a unique double-condenser design and a specialized multi-path reciprocating structure. Heat exchange is thorough, and no dedicated cooling water is needed to reach the required temperature of distilled water.

Piping design: Has no water retention or dead zones, resulting in a low equipment failure rate. Pipeline connections use new sanitary clamp joints, with internal and external mirror polishing; the layout is neat, enabling fast and convenient operation.

Component configuration: Regulating valves, automatic compensation valves, throttle valves, conductivity meters, and temperature meters all adopt high-tech products from home and abroad, with an attractive appearance and comprehensive functions.
