| Model | LD100-4 |
| Distilled water production | 100L/H |
| Steam consumption | 35KgIH |
| Purified water consumption | 130L/H |
| Pure water conductivity requirement | <6us/cm |
| Conductivity of distilled water | <0.6us/cm |
| Steam pressure | 0.2MPa |
| Multistage pump power | 0.75kw |
| Overall dimensions length, width and height | 1100*650*1500mm |

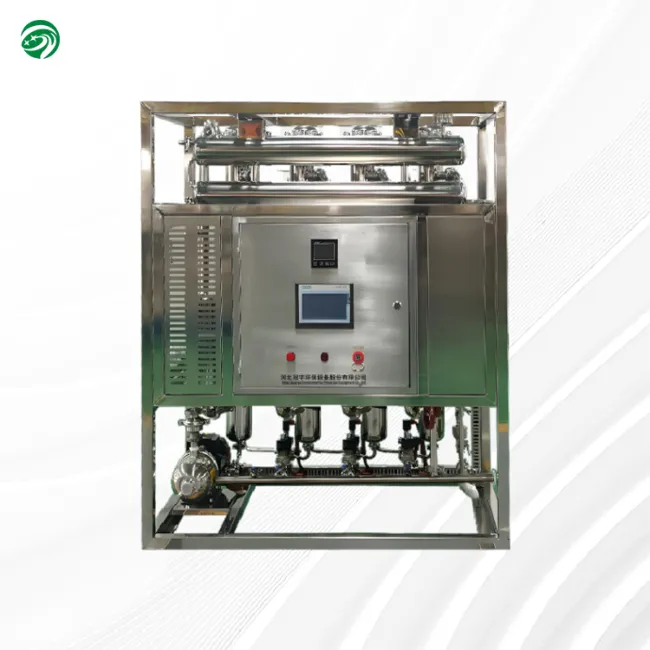

The pharmaceutical tube multi-effect distilled water machine is a cutting-edge product developed and manufactured by Guanyu Company, leveraging its in-house expertise while integrating advanced foreign technologies from Finland, the U.S., Italy, and other nations. This innovation was achieved in collaboration with Professor Lin Zaiqi, a renowned domestic steam specialist from Dalian University of Technology and the inventor of China’s first multi-effect distilled water machine.
Water Quality Requirements: Low-purity water input is acceptable; single-stage reverse osmosis (≤10 μS/cm) suffices to produce distilled water meeting pharmacopoeia standards.
Steam Efficiency: Saves 10%–20% steam through resource-optimized utilization.
Water Conservation: Eliminates need for additional cooling water, preserving purified water resources.
Rapid Output: Produces qualified water within 5–10 minutes of startup.
Superior Quality: Conductivity ≤0.6 μS/cm (national standard ≤2 μS/cm); bacterial endotoxin <0.125 EU/mL (national standard ≤0.25 EU/mL).
Intelligent Quality Control: PLC-based automation continuously monitors outlet conductivity, automatically discharging substandard water. Enables unattended operation with alerts/controls for low/high water levels, pressure fluctuations, and automatic startup/shutdown/protection.
Evaporator: Uses tube falling-film evaporation for uniform water distribution, forming thin-film evaporation. Upper-stage pure steam heats the lower evaporator, completing evaporation and liquefaction into distilled water.
Gas-Liquid Separator: Features split four-stage separation (centrifugal, rotary baffle, wire mesh, upper baffle) to minimize heat source and endotoxin levels. Low pure water requirements; meets pharmacopoeia standards with single-stage RO (<10 μS/cm).
Preheater: U-shaped tube heat exchanger ensures high efficiency, durability, and long service life.
Condenser: Dual-condenser design with multi-pass structure for sufficient heat exchange; no extra cooling water needed.
Piping: Dead-space-free design with sanitary clamp connections, mirror-polished internals, and easy operation.
Components: High-tech valves (regulating, compensation, throttle), conductivity/temperature meters from leading domestic/foreign brands ensure functionality and aesthetics.
This product is ideal for distilled water production in pharmaceutical factories (large, medium, and small), hospital preparation rooms at all levels, chemical research institutes, laboratories, and related industries.
| Product model | Distilled water output L/H | Steam pressure Mpa | Steam consumption Kg/H | Purified water consumption L/H |
| LD100-4 | 100 | 0.2 | 35 | 130 |
| LD200-5 | 200 | 0.2 | 45 | 220 |
| LD300-5 | 300 | 0.3 | 60 | 350 |
| LD500-5 | 500 | 0.3 | 100 | 550 |
| Conductivity requirement of pure water us/cm | Conductivity of distilled water us/cm | Multistage pump power kw | Overall dimensions length * width * height |
| <6 | <0.6us/cm | 0.75 | 1100*650*1500 |
| <6 | <0.6us/cm | 0.75 | 1400x600*2000 |
| <6 | <0.6us/cm | 0.75 | 1550*750*2500 |
| <6 | <0.6us/cm | 0.75 | 1550*750*2500 |
