| Attribute name | Attribute value |
| Operating voltage | 220V |
| Data upload method | Ethernet, RS485 |
| Screen size | 7 inches |
| Screen type | Touch configuration display |
| Operating environment temperature | 0~50°C |
| Dimensions | 500*260*900mm (950 with legs) |
| Monitoring factors | Turbidity, residual chlorine, pH value, temperature |
| Working environment humidity | 0~95% (no condensation) |
| Water pipe diameter | 6mm (outer diameter) |

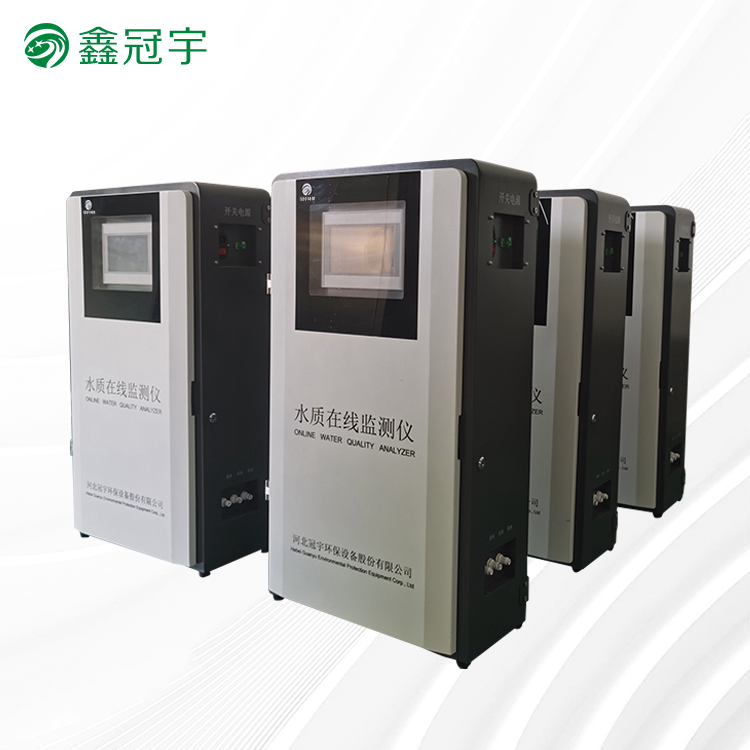

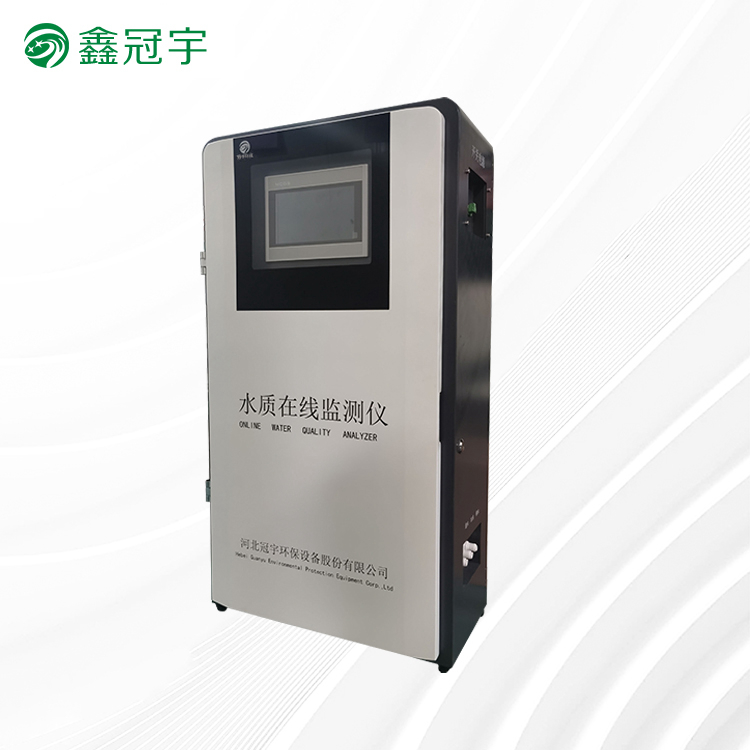

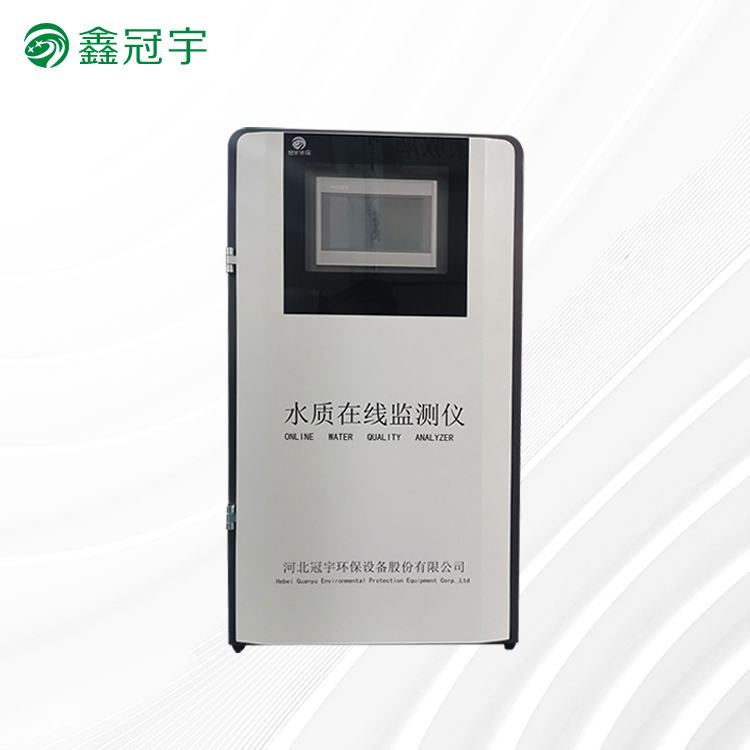

GY-WA4100 online water quality monitor (water supply network sampling model) is mainly used in places where there is a certain water pressure in the water supply and water plant waiting for the water sample pipeline, and the pressure range is 0.15~0.35Mpa; the online water quality monitor (water supply network sampling model) has no self-priming pump and other water intake devices inside, and contains valves, filters, pressure reducing valves, flow meters and other water control devices. The equipment consumes about 80 liters of water per hour, and the monitored data are all water sample data at a slow and uniform speed, eliminating the influence of turbulence on the test results, and its values are more stable.
The whole equipment consists of three parts: water sample circulation system, water quality monitoring system and data acquisition and display system. It adopts 220V50Hz power supply, contains leakage protector and power switch, and ensures the beauty and simplicity of the product.
Multi-parameter integrated integrated body, four digital sensors can monitor turbidity, residual chlorine, pH value, temperature and other parameters.
7-inch touch screen, dynamic display of current water quality monitoring parameters, flexible and convenient operation.
RS485, Ethernet communication interface, can realize remote control and data upload function.
Users can choose: real-time measurement, hourly measurement, interval measurement and other modes according to usage.
It has the function of recording and exporting measurement results, which is convenient for understanding the previous water quality conditions.
It has an alarm function. When the water quality does not meet the standard, the system will automatically record the alarm record.
| Name | Parameters |
| Operating voltage | 220V |
| Data upload method | Ethernet, RS485 |
| Screen size | 7 inches |
| Screen type | Touch configuration display |
| Water pipe diameter | 6mm (outer diameter) |
| Working environment temperature | 0~50℃ |
| Working environment humidity | 0~95% (no condensation) |
| Overall dimensions | 500*260*900mm (950 with legs) |
| Monitoring elements | Turbidity, residual chlorine, pH value, temperature |

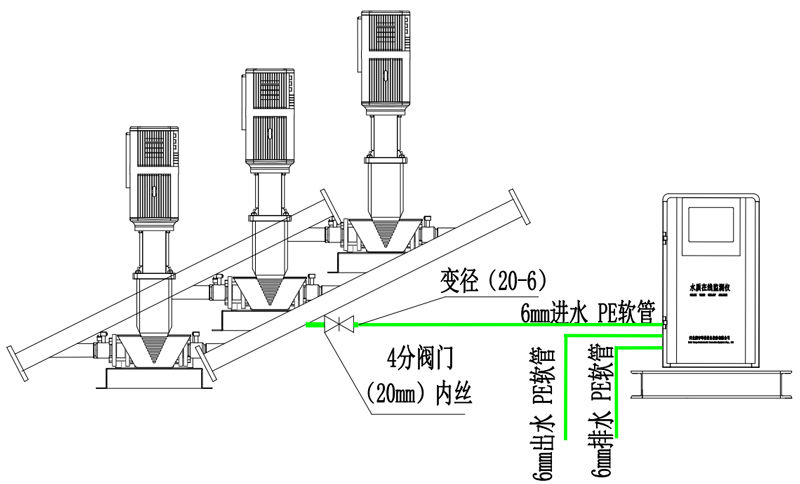

1. Water pump outlet installation

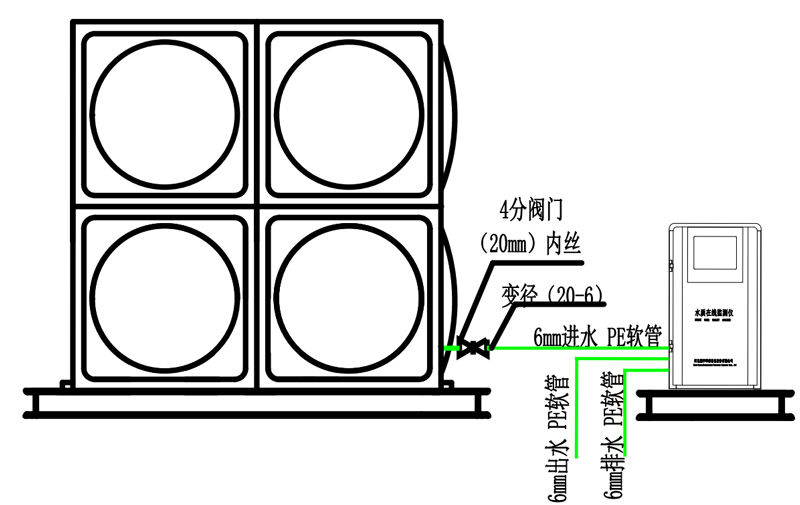

2. Water tank docking installation
