| Brand | Xinguanyu |
| Equipment model | Double tube type |
| Power | 120w |
| Customization | Support |
| Lamp brand | Imported |
| Lamp life | 9000/12000 hours |
| UV wavelength | 253.7mm |
| Inlet and outlet diameters | DN25-100 |
| Equipment style | Pipeline/flow-through |
| Viscosity | 50cps/0.05pa*s |
| Flow rate | 0.5-1.6m/s |
| Flow rate | 0.8-45m³/h |
| Custom processing | Support |
| Material | 304/316 stainless steel |

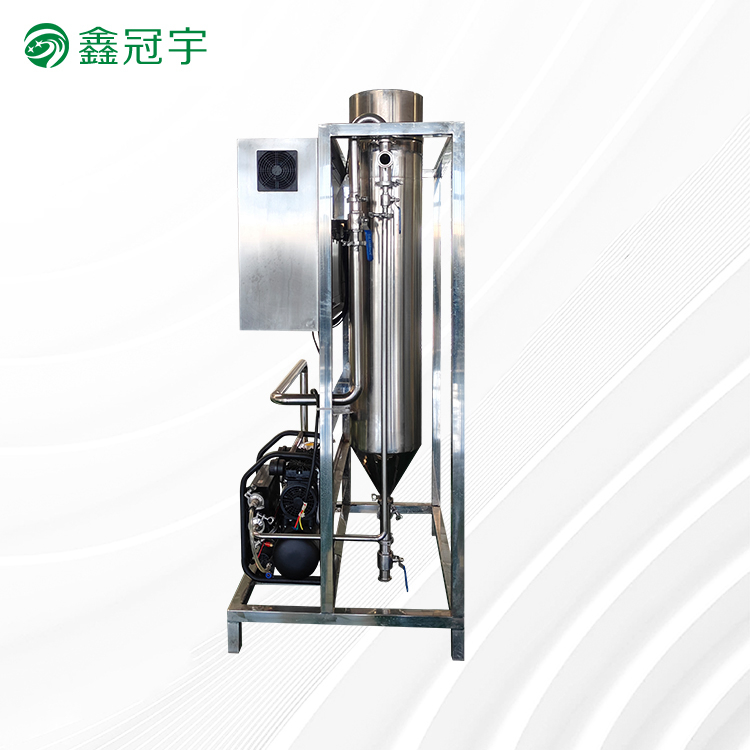

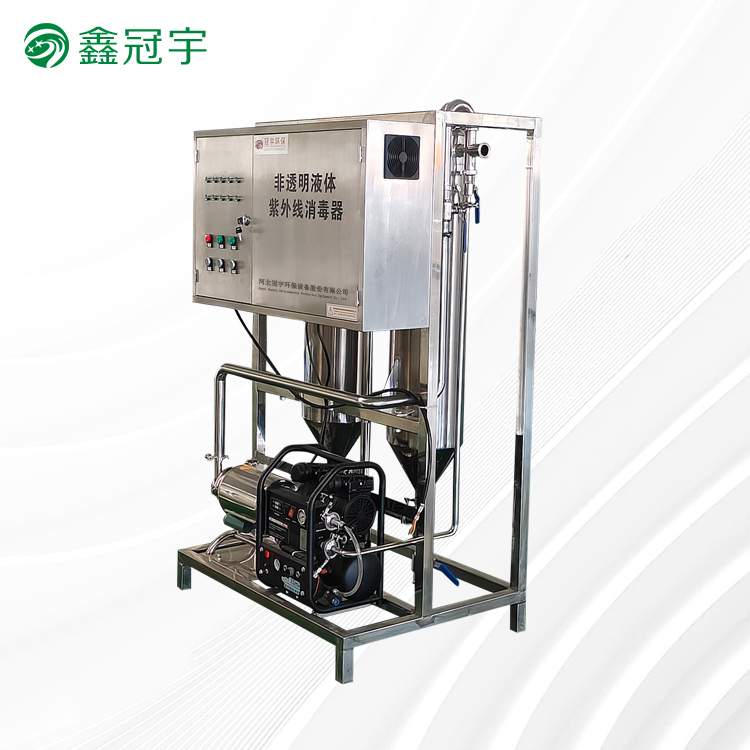

Non-transparent liquid UV sterilizer is a new generation of high-tech products developed by the company based on the current working conditions of beverages, dairy products, oils and other industries, which have complex characteristics such as non-transparency, viscosity, chromaticity, temperature, etc., and the existing disinfection process is complex and the equipment is expensive. And combined with the advantages of convenient and fast ultraviolet sterilization, it does not affect the effective ingredients of the product. Through various experiments, the relationship between the irradiation distance, irradiation time, product liquid thickness, temperature and other factors of ultraviolet light in the sterilization of non-transparent liquids and the bacterial rate is obtained.
Convenient, hygienic, fast, safe, environmentally friendly, and low cost.
Not only will it not cause nutrient loss in the product, but it will also increase the nutritional value of the product to some extent
The scientific design of the disinfection cavity can make the disinfection liquid achieve radioactive flow, and the liquid forms a thin film in the disinfection cavity, thereby enhancing the penetration of ultraviolet rays on the liquid and increasing the disinfection effect. The energy output of this equipment is about 7 to 10 times that of the traditional disinfection system.
It can be customized according to the different needs of customers to meet the various working conditions of the above industries.

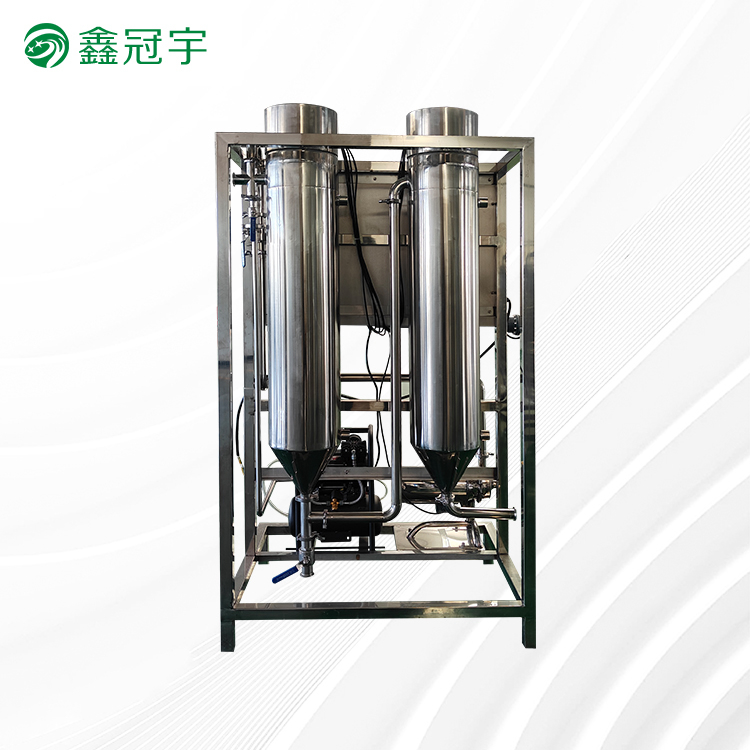

Equipment model Single type: 0.5-4m3/h Double tube type: 5-8m³/h Combination type: 10-50m³/h.
Liquid disinfection of beer, milk, goat milk, various dairy drinks, liquid syrup, soy sauce, vinegar, beverages, fruit juice, vegetable juice, oil and other industries.
| Product model | Dimensions | Viscosity (cps)/(pa*s) | Inlet and outlet diameters | Flow rate m/s | Flow rate m³/h | Power W | Remarks |
| GYF-UUVC-1 | 550*250*1650 | 50/0.05 | DN25 | 0.5~0.9 | 0.8~1.5 | 120 | |
| GYF-UUVC-5 | 650*300*1650 | DN50 | 0.7~1.0 | 4.9~7 | 600 | ||
| GYF-UUVC-8 | 750*350*1700 | DN65 | 8~12 | 960 | |||
| GYF-UUVC-11 | 850*400*1750 | DN80 | 12~18 | 1320 | |||
| GYF-UUVC-27 | DN100 | 1.0~1.6 | 28~45 | Customized | |||
| GYF-UUVC-1 | 550*250*1650 | 100/0.1 | DN25 | 0.3~0.6 | 0.5~1.0 | 120 | |
| GYF-UUVC-4 | 550*250*1650 | DN50 | 0.5~0.7 | 3.5~4.9 | 480 | ||
| GYF-UUVC-7 | 650*300*1650 | DN65 | 6~8 | 840 | |||
| GYF-UUVC-10 | 850*400*1750 | DN80 | 9~12 | 1200 | |||
| GYF-UUVC-23 | DN100 | 0.7~1.0 | 19~28 | Customized | |||
| GYF-UUVC-4 | 550*250*1650 | 1000/1 | DN50 | 0.16~0.25 | 1.1~1.7 | 480 | |
| GYF-UUVC-7 | 650*300*1650 | DN65 | 1.9~2.9 | 840 | |||
| GYF-UUVC-11 | 850*400*1750 | DN80 | 2.8~4.5 | 1320 | |||
| GYF-UUVC-22 | DN100 | 0.25~0.35 | 7~9 | Customized |
