| Diameter | DN100-150 |
| Power of single lamp | 1kw-3kw |
| Automatic cleaning | Yes |
| Intensity monitoring | Yes |
| Material | 304/316 stainless steel |
| Reference water volume | 30-125m³/H |
| Number of lamps | 1 piece |
| Equipment power | 1kw-3kw |
| PLC and touch screen | Yes |
| Surface treatment | Polished/matte |
| Lamp brand | Imported |
| Voltage power supply | 220V50HZ - 380V50HZ |

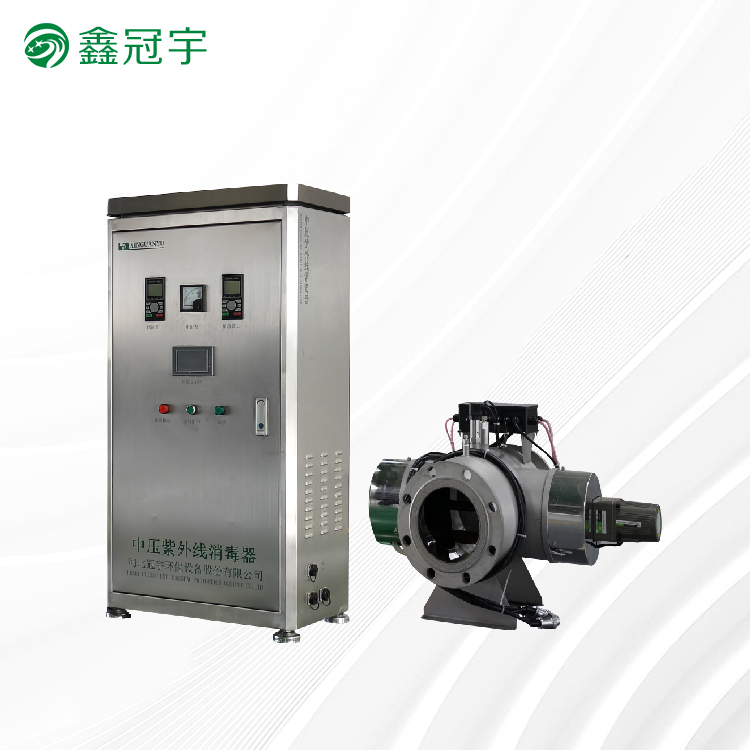

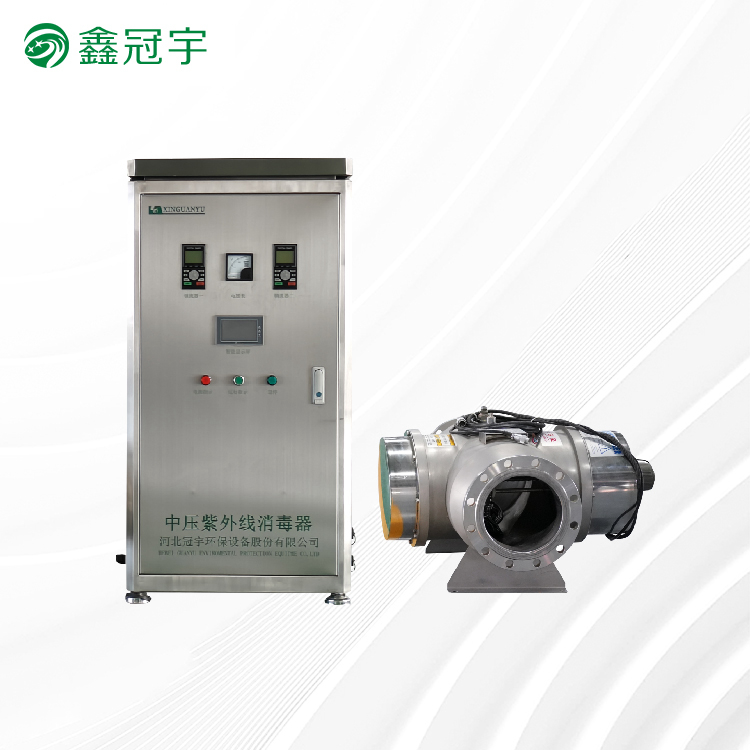

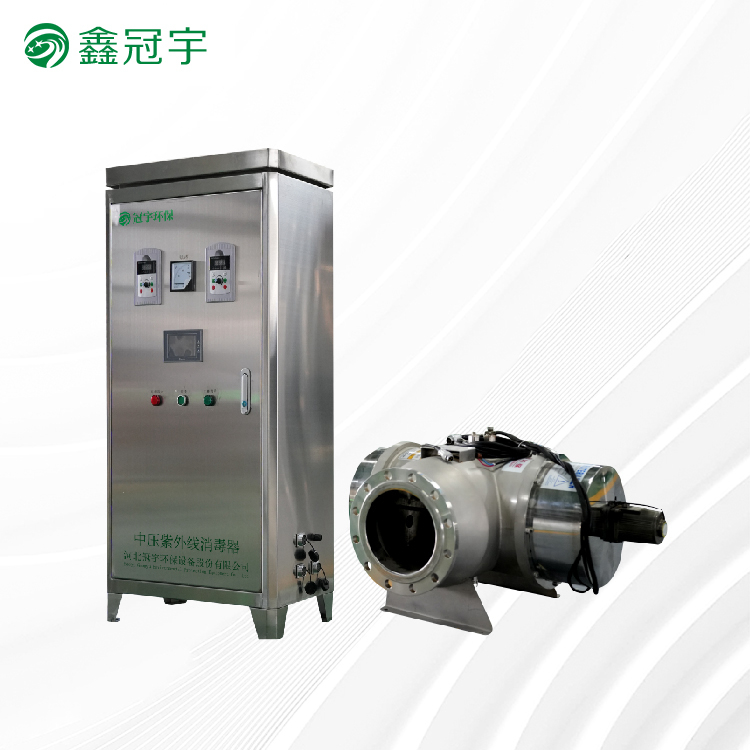

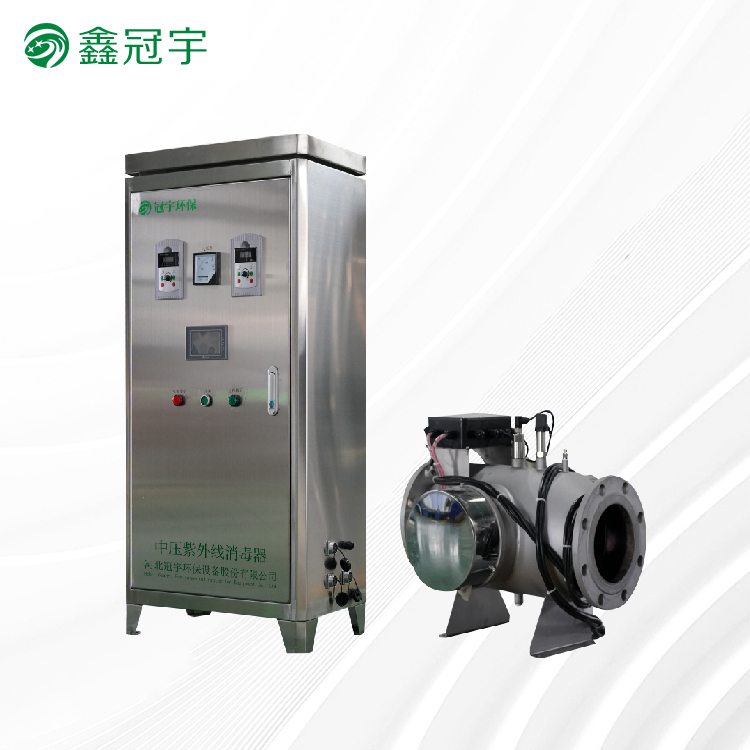

The core working principle of medium-pressure UV equipment is to emit ultraviolet rays covering a wide wavelength range (wavelength range 200nm~400nm), especially the UVC band (200~280nm) through a special medium-pressure mercury lamp. It can emit ultraviolet rays covering a wide wavelength, including multiple bands that have significant effects on sterilization and decomposition of organic matter.
Through ultraviolet irradiation, the DNA or RNA structure of microorganisms is destroyed, making them unable to reproduce and survive, thereby achieving efficient sterilization and disinfection. In addition, the energy of ultraviolet rays can also cause the molecular bonds of organic matter to break and decompose organic pollutants, such as removing humus and odor substances in water.
Highly durable light source system
The core is a medium-pressure mercury lamp, which has high power and wide spectrum output, and can continuously and stably emit full-band ultraviolet rays. Some equipment is also equipped with multiple mercury lamps to increase the intensity of ultraviolet radiation;
Reaction chamber
A well-designed reaction chamber ensures that ultraviolet rays are evenly irradiated on the treatment object, improving the treatment effect. Its material is usually selected from materials with high UV transmittance and corrosion resistance, such as quartz glass;
Control system
Realizes precise control of parameters such as equipment start, stop, running time, UV intensity, etc., automatic cleaning, convenient operation and ensures stable operation of the equipment;
Broad-spectrum sterilization and disinfection
Full-band ultraviolet rays can effectively kill a variety of bacteria, viruses, fungi, algae and other microorganisms, with a wide coverage;
Efficient treatment of organic matter
Decompose organic pollutants in water, such as removing humus and odor substances in water;
Quick response
The action process of ultraviolet rays with microorganisms and organic matter is rapid, and can achieve the effect of sterilization and decomposition of organic matter in a short time;
No secondary pollution
The ultraviolet sterilization and disinfection process is a physical action, and will not produce secondary pollution like chemical disinfectants.

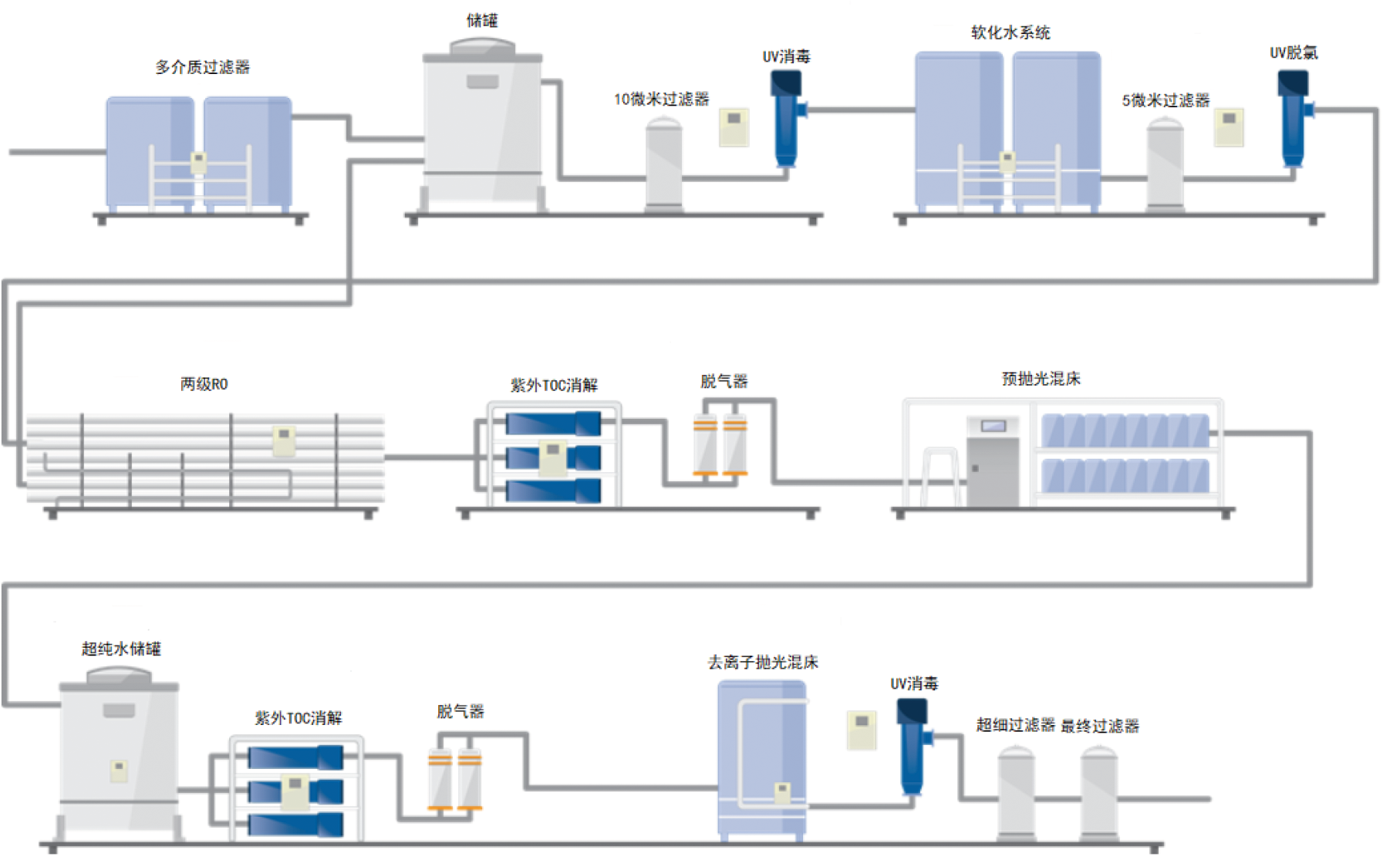

TOC remover is to remove TOC total organic carbon in ultrapure water. TOC total organic carbon is an organic medium that is difficult to degrade in ultrapure water, which affects the purity of ultrapure water used by the semiconductor industry to clean semiconductor materials or electronic chips. There are the following more significant effects:
1. The total organic carbon residue on the product will cause the performance of the semiconductor material to deteriorate or fail;
2. Under certain conditions, the total organic carbon will undergo an oxidation reaction, causing the semiconductor material to oxidize and corrode, damaging its structure and function;
3. When the total organic matter remains in the water, it will form small bubbles or tiny gas groups attached to the surface of the product, damaging its structure and function.
Photolysis: UV photons interact with water molecules to stimulate water molecules to generate highly oxidizing hydroxyl radicals (·OH), which can oxidize organic matter in the water;
Direct photolysis: High-energy photons directly break the organic molecular chain and decompose the organic matter;
Ionization: UV photons break the organic molecular chain, ionize it, and remove it through subsequent ion exchange;
| Equipment model | Disinfection power | Single lamp power | Number of lamps | Diameter | Reference water volume (m³/H) | Voltage power |
| GYZ-UUVC-1/1.0KW | 1KW | 1KW | 1 stick | DN100 | 30-40 | 220V50Hz |
| GYZ-UUVC-1/2.0KW | 2KW | 2KW | 1 stick | DN125 | 60-80 | 380V50Hz |
| GYZ-UUVC-1/3.0KW | 3KW | 3KW | 1 stick | DN150 | 100-125 | 380V50Hz |
| GYZ-UUVC-2/2.0KW | 4KW | 2KW | 2 sticks | DN200 | 130-150 | 380V50Hz |
| GYZ-UUVC-1/6.0KW | 6KW | 6KW | 1 stick | DN250 | 200-250 | 380V50Hz |
| GYZ-UUVC-3/3.0KW | 9KW | 3KW | 3 sticks | DN250 | 300-350 | 380V50Hz |
| GYZ-UUVC-2/6.0KW | 12kW | 6KW | 2 sticks | DN300 | 300-350 | 380V50Hz |
| GYZ-UUVC-3/6.0KW | 18KW | 6KW | 3 sticks | DN350 | 350-400 | 380V50Hz |
| GYZ-UUVC-4/6.0KW | 24KW | 6KW | 4 sticks | DN400 | 400-450 | 380V50Hz |
