| Automatic cleaning | Yes |
| Intensity monitoring | Yes |
| Number of lamps | 1-3 |
| Material | 304/316 stainless steel |
| Disinfection power | 3-6kw |
| Caliber | DN150-300 |
| PLC and touch screen | Yes |
| Surface treatment | Polished/matte |
| Lamp brand | Imported |
| Single lamp power | 3-6kw |
| Reference water volume | 100-350m³/H |
| Equipment power | 3-12kw |

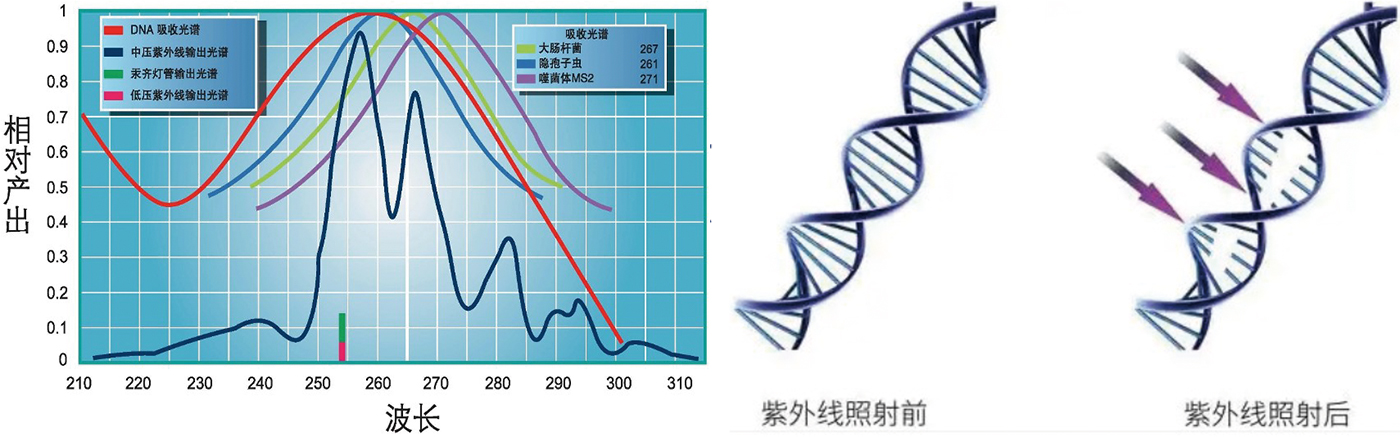

The core working principle of medium-pressure UV equipment is to emit ultraviolet rays covering a wide wavelength range (wavelength range 200nm~400nm), especially the UVC band (200~280nm) through a special medium-pressure mercury lamp. It can emit ultraviolet rays covering a wide wavelength, including multiple bands that have significant effects on sterilization and decomposition of organic matter.
Through ultraviolet irradiation, the DNA or RNA structure of microorganisms is destroyed, making them unable to reproduce and survive, thereby achieving efficient sterilization and disinfection. In addition, the energy of ultraviolet rays can also cause the molecular bonds of organic matter to break and decompose organic pollutants, such as removing humus and odor substances in water.
Highly durable light source system
The core is a medium-pressure mercury lamp, which has high power and wide spectrum output, and can continuously and stably emit full-band ultraviolet rays. Some equipment is also equipped with multiple mercury lamps to increase the intensity of ultraviolet radiation;
Reaction chamber
A well-designed reaction chamber ensures that ultraviolet rays are evenly irradiated on the treatment object, improving the treatment effect. Its material is usually selected from materials with high UV transmittance and corrosion resistance, such as quartz glass;
Control system
Realizes precise control of parameters such as equipment start, stop, running time, UV intensity, etc., automatic cleaning, convenient operation and ensures stable operation of the equipment;
Broad-spectrum sterilization and disinfection
Full-band UV can effectively kill a variety of bacteria, viruses, fungi, algae and other microorganisms, with a wide coverage;
Efficient treatment of organic matter
Decompose organic pollutants in water, such as removing humus and odor substances in water;
Quick response
The action process of ultraviolet rays with microorganisms and organic matter is rapid, and can achieve the effect of sterilization and decomposition of organic matter in a short time;
No secondary pollution
The UV sterilization and disinfection process is a physical action and will not produce secondary pollution like chemical disinfectants.
High efficiency sterilization capability
The medium-pressure UV sterilizer uses multi-spectral UV radiation to quickly and effectively kill common pathogens, viruses, parasites and other microorganisms in water. Its unique sterilization mechanism reduces the number of bacteria, algae and parasites, thereby reducing the risk of disease.
No chemical residue
The medium-pressure UV disinfection equipment does not require the use of any chemical agents, so no chemical residues will be produced. This is of great significance to the environmental friendliness and product safety of aquaculture. Consumers are increasingly concerned about food safety issues, and the use of medium-pressure UV sterilizers can enhance the market competitiveness of aquatic products.
Improve water quality stability
The multi-spectral sterilizer eliminates turbidity, suspended matter and organic matter in the water body, effectively purifies the water quality, and maintains the stability of the breeding environment. Good water quality contributes to the growth and healthy development of aquatic animals, thereby improving breeding output and quality.
Energy saving and environmental protection
Compared with traditional disinfection equipment, the medium-pressure UV sterilizer has higher energy efficiency and low energy consumption. At the same time, it will not produce any pollutants to the water body and can be recycled. This energy-saving and environmentally friendly feature is in line with today's society's pursuit of sustainable development and actively promotes the sustainable development of the aquaculture industry.
| Equipment model | Disinfection power | Single lamp power | Number of lamps | Diameter | Reference water volume (m³/H) | Voltage power |
| GYZ-UUVC-1/1.0KW | 1KW | 1KW | 1 stick | DN100 | 30-40 | 220V50Hz |
| GYZ-UUVC-1/2.0KW | 2KW | 2KW | 1 stick | DN125 | 60-80 | 380V50Hz |
| GYZ-UUVC-1/3.0KW | 3KW | 3KW | 1 stick | DN150 | 100-125 | 380V50Hz |
| GYZ-UUVC-2/2.0KW | 4KW | 2KW | 2 sticks | DN200 | 130-150 | 380V50Hz |
| GYZ-UUVC-1/6.0KW | 6KW | 6KW | 1 stick | DN250 | 200-250 | 380V50Hz |
| GYZ-UUVC-3/3.0KW | 9KW | 3KW | 3 sticks | DN250 | 300-350 | 380V50Hz |
| GYZ-UUVC-2/6.0KW | 12kW | 6KW | 2 sticks | DN300 | 300-350 | 380V50Hz |
| GYZ-UUVC-3/6.0KW | 18KW | 6KW | 3 sticks | DN350 | 350-400 | 380V50Hz |
| GYZ-UUVC-4/6.0KW | 24KW | 6KW | 4 sticks | DN400 | 400-450 | 380V50Hz |
