| Single lamp power | 3-6kw |
| Automatic cleaning | Yes |
| Intensity monitoring | Yes |
| Material | 304/316 stainless steel |
| Reference water volume | 200-450m³/H |
| Number of lamps | 1-4 |
| Disinfection power | 6-24kw |
| PLC and touch screen | Yes |
| Surface treatment | Polished/matte |
| Lamp brand | Imported |
| Voltage power supply | 380V50Hz |
| caliber | DN250-400 |
The core working principle of medium-pressure UV equipment is to emit ultraviolet rays covering a wide wavelength range (wavelength range 200nm~400nm), especially the UVC band (200~280nm) through a special medium-pressure mercury lamp. It can emit ultraviolet rays covering a wide wavelength, including multiple bands that have significant effects on sterilization and decomposition of organic matter.
Through ultraviolet irradiation, the DNA or RNA structure of microorganisms is destroyed, making them unable to reproduce and survive, thereby achieving efficient sterilization and disinfection. In addition, the energy of ultraviolet rays can also cause the molecular bonds of organic matter to break and decompose organic pollutants, such as removing humus and odor substances in water.
Highly durable light source system
The core is a medium-pressure mercury lamp, which has high power and wide spectrum output, and can continuously and stably emit full-band ultraviolet rays. Some equipment is also equipped with multiple mercury lamps to increase the intensity of ultraviolet radiation;
Reaction chamber
A well-designed reaction chamber ensures that ultraviolet rays are evenly irradiated on the treatment object, improving the treatment effect. Its material is usually selected from materials with high UV transmittance and corrosion resistance, such as quartz glass;
Control system
Realizes precise control of parameters such as equipment start, stop, running time, UV intensity, etc., automatic cleaning, convenient operation and ensures stable operation of the equipment;
Broad-spectrum sterilization and disinfection
Full-band UV can effectively kill a variety of bacteria, viruses, fungi, algae and other microorganisms, with a wide coverage;
Efficient treatment of organic matter
Decompose organic pollutants in water, such as removing humus and odor substances in water;
Quick response
The action process of ultraviolet rays with microorganisms and organic matter is rapid, and can achieve the effect of sterilization and decomposition of organic matter in a short time;
No secondary pollution
The UV sterilization and disinfection process is a physical action and will not produce secondary pollution like chemical disinfectants.

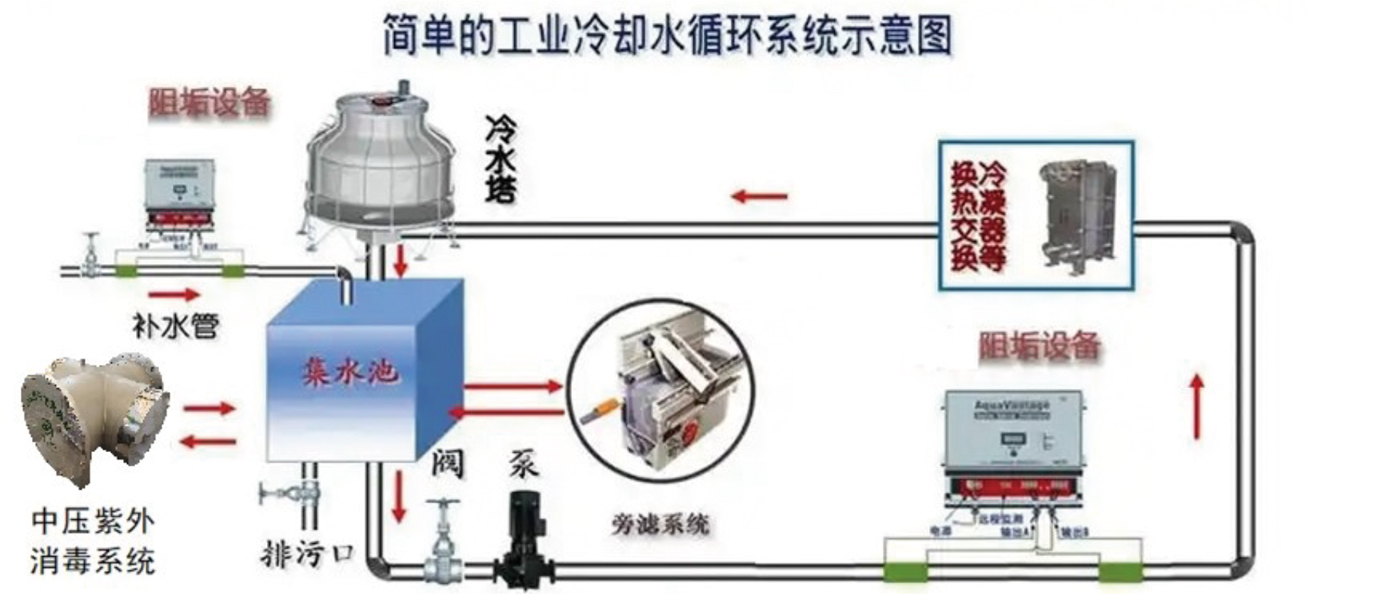

In the industrial production process, circulating water will be contaminated by various bacteria, microorganisms and algae, resulting in a decrease in the quality of circulating water and even damage to equipment and products. At this time, medium-pressure UV sterilizer has become a powerful tool for industrial circulating water treatment. Medium-pressure UV sterilizer is a device that uses ultraviolet rays for sterilization.
In industrial circulating water treatment, medium-pressure ultraviolet disinfection can effectively kill various microorganisms, bacteria and other harmful substances in the circulating water, thereby ensuring the disinfection and sterilization effect of the circulating water. The principle is to irradiate the ultraviolet rays generated by the medium-pressure mercury lamp into the circulating water pre-treated by the filter, killing bacteria, viruses, algae and other microorganisms in it, thereby achieving the purpose of disinfection and sterilization.
High efficiency: The medium-pressure ultraviolet disinfection can efficiently kill bacteria, viruses and other microorganisms in a short time.
Safety: The medium-pressure ultraviolet disinfection does not require the addition of any chemical agents, will not produce any side effects, and is harmless to the human body.
Environmental protection: The medium-pressure ultraviolet disinfection does not produce any pollutants, is harmless to the environment, and is a green and environmentally friendly disinfection method.
Wide applicability: The medium-pressure ultraviolet disinfection is suitable for various industrial circulating water treatment fields, such as steel, electricity, semiconductors and other industries, and can achieve disinfection and sterilization in multiple fields.
Simple operation: The medium-pressure ultraviolet disinfection is simple to operate and easy to maintain. You only need to follow the instructions for correct operation and maintenance.
Economical and practical: The medium-pressure UV sterilizer does not require the addition of conventional chemical agents, which reduces the operating cost of the equipment.
| Equipment model | Disinfection power | Single lamp power | Number of lamps | Diameter | Reference water volume (m³/H) | Voltage power |
| GYZ-UUVC-1/1.0KW | 1KW | 1KW | 1 stick | DN100 | 30-40 | 220V50Hz |
| GYZ-UUVC-1/2.0KW | 2KW | 2KW | 1 stick | DN125 | 60-80 | 380V50Hz |
| GYZ-UUVC-1/3.0KW | 3KW | 3KW | 1 stick | DN150 | 100-125 | 380V50Hz |
| GYZ-UUVC-2/2.0KW | 4KW | 2KW | 2 sticks | DN200 | 130-150 | 380V50Hz |
| GYZ-UUVC-1/6.0KW | 6KW | 6KW | 1 stick | DN250 | 200-250 | 380V50Hz |
| GYZ-UUVC-3/3.0KW | 9KW | 3KW | 3 sticks | DN250 | 300-350 | 380V50Hz |
| GYZ-UUVC-2/6.0KW | 12kW | 6KW | 2 sticks | DN300 | 300-350 | 380V50Hz |
| GYZ-UUVC-3/6.0KW | 18KW | 6KW | 3 sticks | DN350 | 350-400 | 380V50Hz |
| GYZ-UUVC-4/6.0KW | 24KW | 6KW | 4 sticks | DN400 | 400-450 | 380V50Hz |
