| Product model | GYDZ -150 |
| Distilled water production | 150L/H |
| Steam consumption | 165Ka/H |
| Steam pressure | 0.20MPa |
| Equipment weight | 125kg |
| Cooling water consumption | 1:8 |
| Distilled water temperature | 72-97°C |
| Equipment outline | 1340*700*1450mm |
| Cooling water pipe diameter (inner diameter) | DN32 |
| Cooling water pressure | >0.1MPa |
| Equipment power | 108kw |

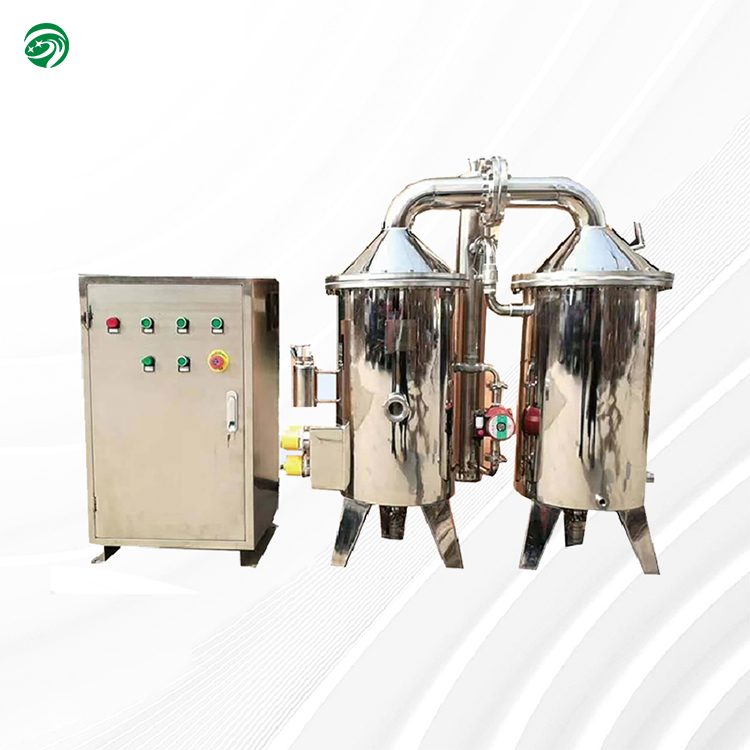

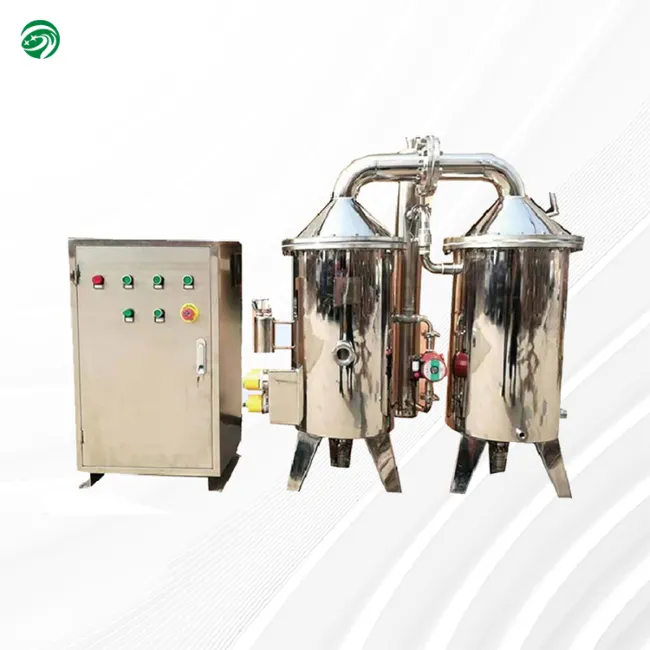

The electric high-efficiency energy-saving distilled water machine is developed by Guanyu Company on the basis of the high-efficiency energy-saving self-descaled distilled water machine, based on the current society's advocacy of environmental protection, energy saving and emission reduction. It uses electricity to replace the boiler to generate steam and then uses it in conjunction with the high-efficiency distilled water machine. It is a multi-functional high-tech product that is popular among small and medium-sized enterprises.
The equipment can directly use natural water or city water supply, and does not require purified water or reverse osmosis water.
Compared with the multi-effect distilled water machine, this equipment can save the initial reverse osmosis equipment (electrodialysis) and mixed bed, thereby saving investment costs.
Electric high-efficiency distilled water machine can also save boiler equipment and replace boiler to generate steam power;
Adjustable Ph value: Use temperature adjustment method to adjust the carbon dioxide and ammonia content in distilled water to adjust the pH value of distilled water. The adjustment value can be adjusted from 5-7 at will
The water in the evaporator is heated by electric heating tubes. The water is heated and turned into steam. The steam enters the condenser through the isolator (inside the evaporator) and then enters the spiral condenser tube for cooling, forming distilled water and flowing out from the distilled water outlet.
This product is suitable for large, medium and small pharmaceutical factories, preparation rooms of hospitals at all levels, chemical research units, laboratories, beverages, mines, batteries, cosmetics, beauty and other industries to produce distilled water
| Product model | Distilled water output | Equipment power kw | Distilled water temperature ℃ | Cooling water pressure Mpa | Cooling water consumption |
| GYDZ-50 | 50L/h | 36 | 72-97℃ | >0.1Mpa | 1:8 |
| GYDZ-100 | 100L/h | 72 | 72-97℃ | >0.1Mpa | 1:8 |
| GYDZ-150 | 150L/h | 108 | 72-97℃ | >0.1Mpa | 1:8 |
| Steam pressure Mpa | Steam volume Kg/H | Cooling water pipe diameter (inner diameter) (mm) | Equipment weight kg | Equipment outline mm |
| 0.15Mpa | 55 | 25 | 80 | Length 1150 Width 550 Height 1060 Condenser and evaporator diameter height 400 |
| 0.15Mpa | 110 | 25 | 100 | Length 1150 Width 550 Height 1060 Condenser and evaporator diameter height 400 |
| 0.20Mpa | 165 | 32 | 125 | Length 1340 Width 700 Height 1450 Condenser and evaporator diameter height 500 |
