| Filter core length | 10, 20, 30, 40 |
| Temperature range | 1-300℃ |
| Filter core length | 250-1000m/m |
| Filter accuracy | 0.45-100um |
| Number of filter cores | 1/3/5/7/9/11/13/15/21/32 core |
| Filter element material | Titanium rod filter element |
| Working pressure | 0.1-1.0Mpa |
| Filter capacity | 0.2-50T/H |
| Inlet and outlet connection method | Flange connection, quick-release connector connection, threaded connection |

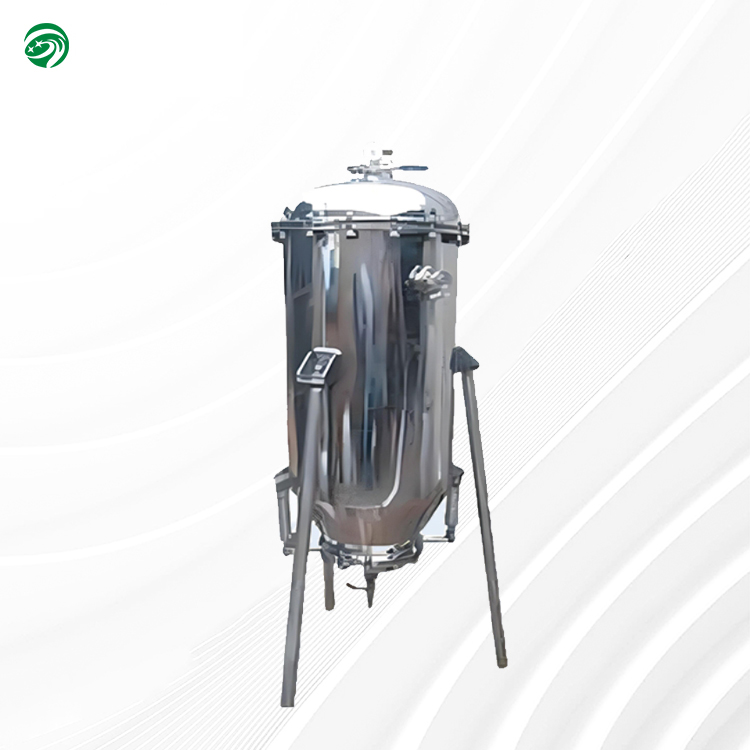

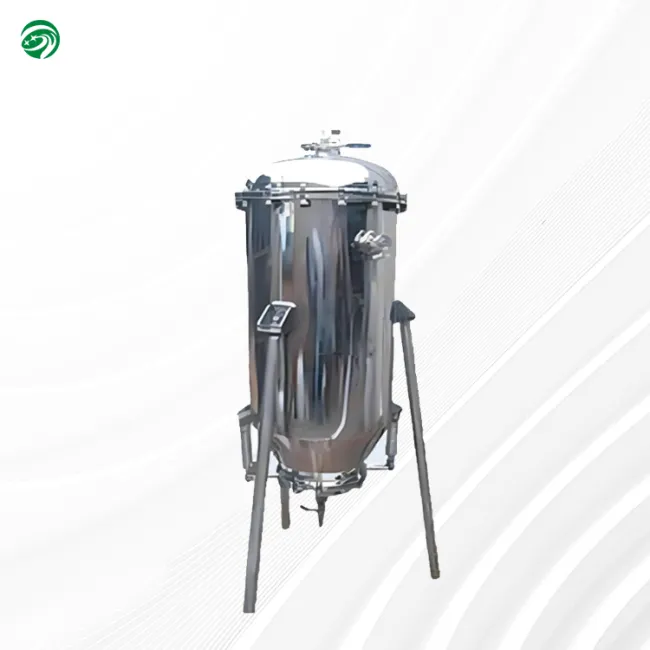

The titanium rod filter is a novel filtration device developed in recent years both at home and abroad. It can remove particles and bacteria larger than 0.45μm in liquids, and boasts advantages including high filtration accuracy, fast filtration speed, minimal adsorption, no medium shedding, resistance to acid and alkali corrosion, high-temperature resistance, and easy operation. Currently, it is widely used in industries such as medicine, chemical engineering, electronics, beverages, fruit wines, biochemical water treatment, and environmental protection.

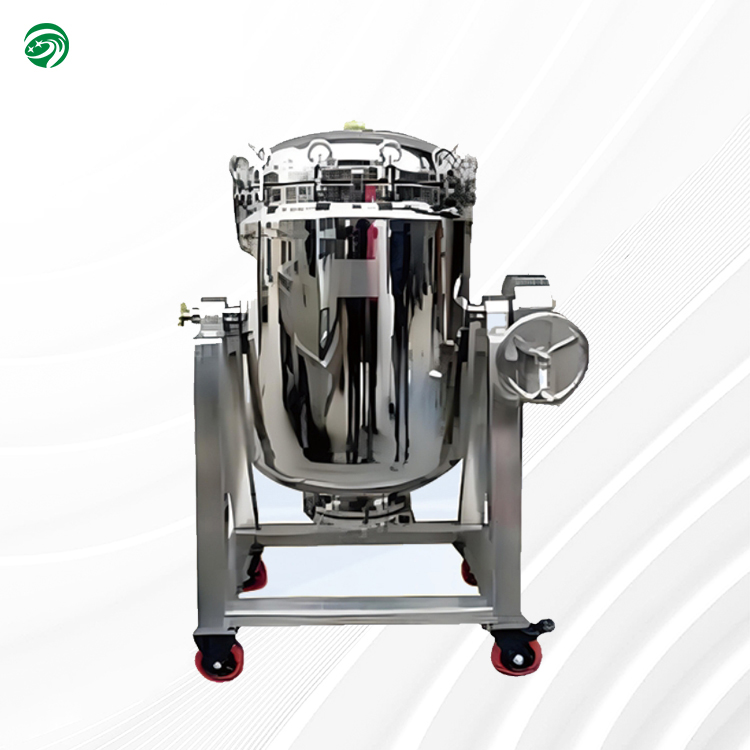

The bag filter features large treatment capacity, small volume, and strong contaminant holding capacity. Based on the working principle and structure of the bag filter system, replacing the filter bag is convenient and quick—there is no need to clean the filter itself, saving labor and time. The side leakage probability of the filter bag is low, which effectively ensures filtration quality. Bag filtration can withstand greater working pressure, with small pressure loss, low operating costs, and obvious energy-saving effects. The filtration accuracy of the filter bag is constantly improving, and currently reaches 0.5μm. Additionally, bag filtration has a wide range of applications, flexible use, and various installation methods.
It is applicable to industries such as pharmaceuticals, chemicals, electronics, beverages, fruit wines, biochemical water treatment, and environmental protection.
| Inlet and outlet connection methods | Flange connection, quick-release connector connection, threaded connection |
| Filtration accuracy (um) | 0.45-100 |
| Filtration capacity (t/h) | 0.2-50 |
| Filter element length (m/m) | 250-1000 |
| Working pressure (Mpa) | 0.1-1.0 |
| Temperature range (℃) | 1-300 |
| Filter element material | Titanium rod filter element |
| Filter element length | 10, 20, 30, 40 |
| Number of filter barrel cores | 1 core, 3 core, 5 core, 7 core, 9 core, 11 core, 13 core, 15 core, 21 core, 32 core |
