| Filtration capacity | 0.5-100T/H |
| Inlet and outlet connection methods | Flange connection, quick-release connector connection, threaded connection |
| Filtration aperture | 0.1/0.22/1/3/5/10um |
| Temperature range | 1-80℃ |
| Filter element length | 250-1000m/m |
| Filtration accuracy | 0.1/0.2/0.45/1-60um |
| Filter element material | Polypropylene series microporous filters can filter out most of the particles, so they are widely used in fine filtration and sterilization processes. The filter cartridges are 1 core, 3 cores, 5 cores, 7 cores, 9 cores, 11 cores, 13 cores, 15 cores, 21 cores, etc. The length of the folded filter element is 10, 20.30, 40. The filter element materials are polypropylene, polytetraethylene, and acetate fiber. |
| Working pressure | 0.1-0.6MPa |

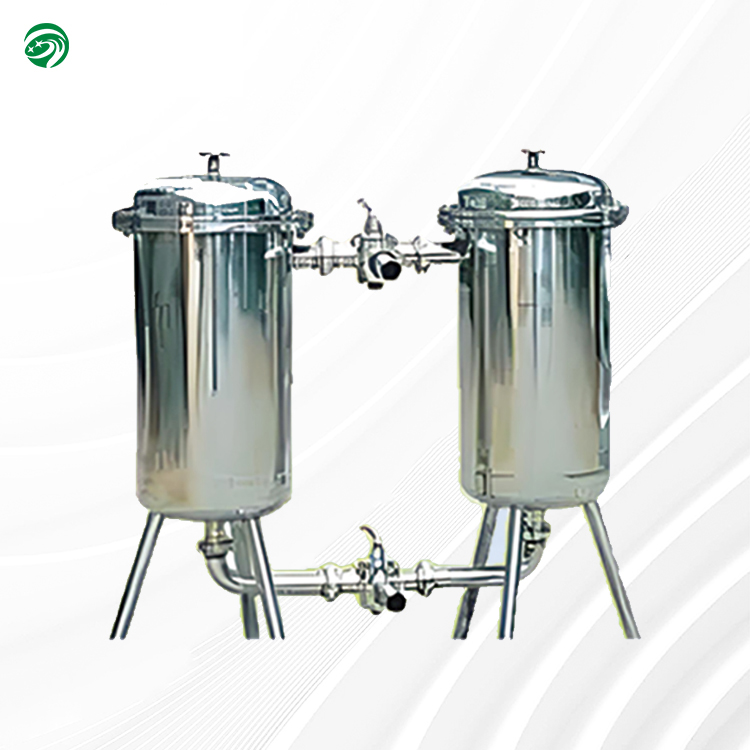

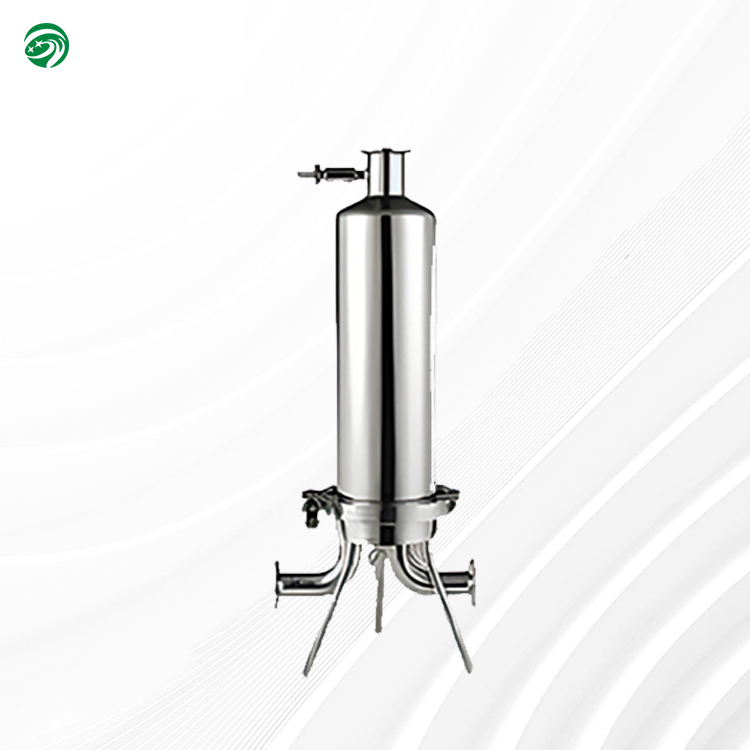

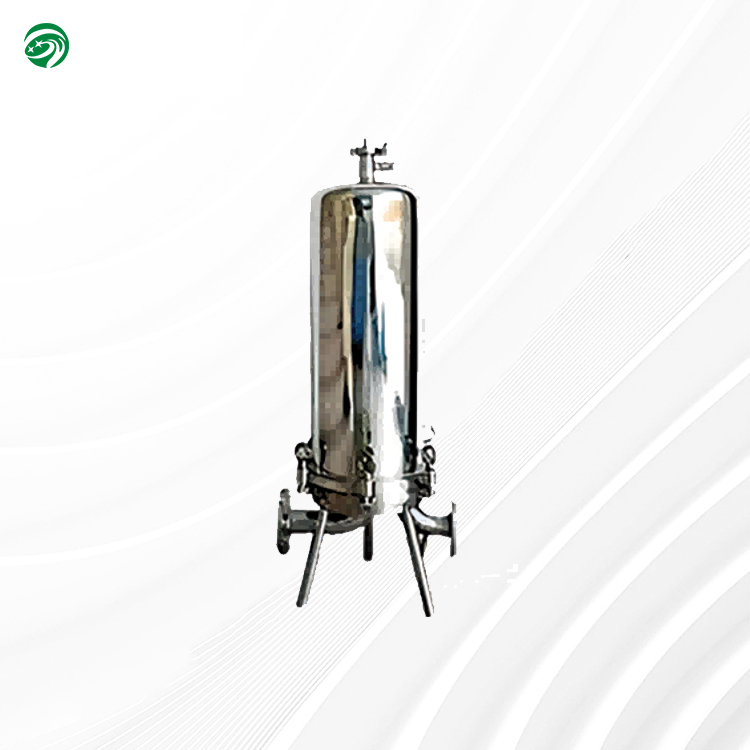

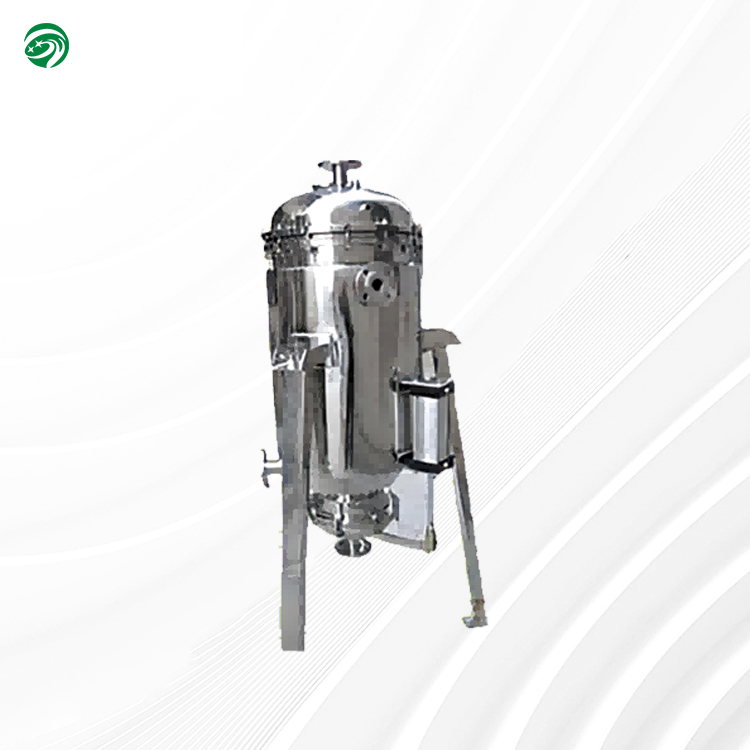

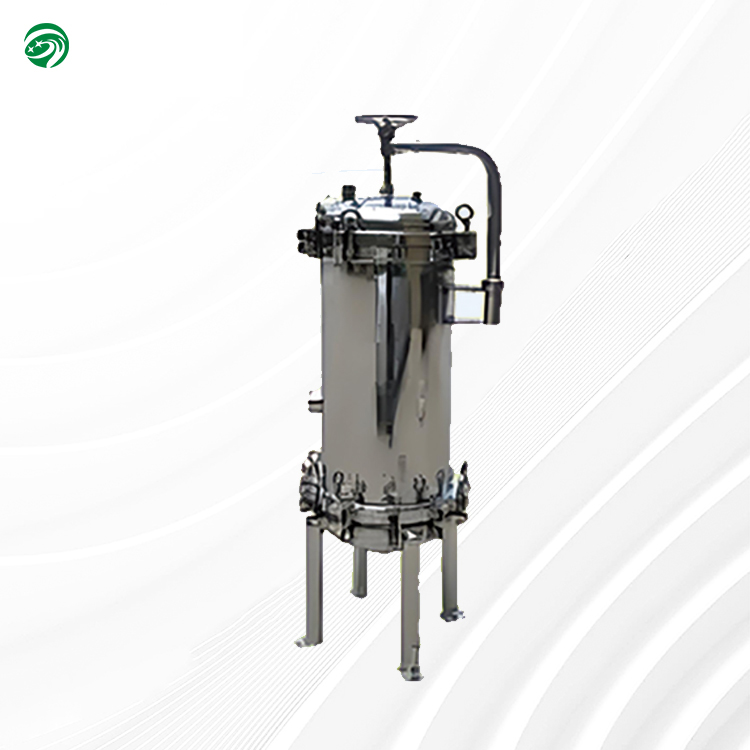

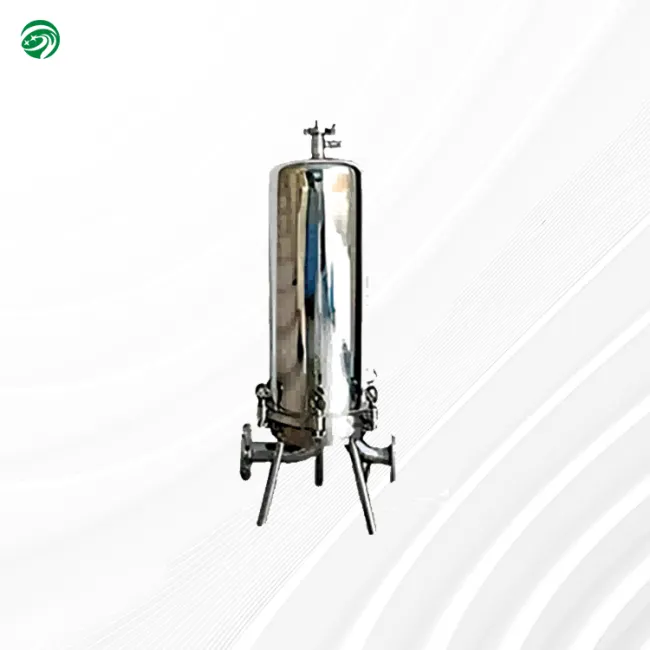

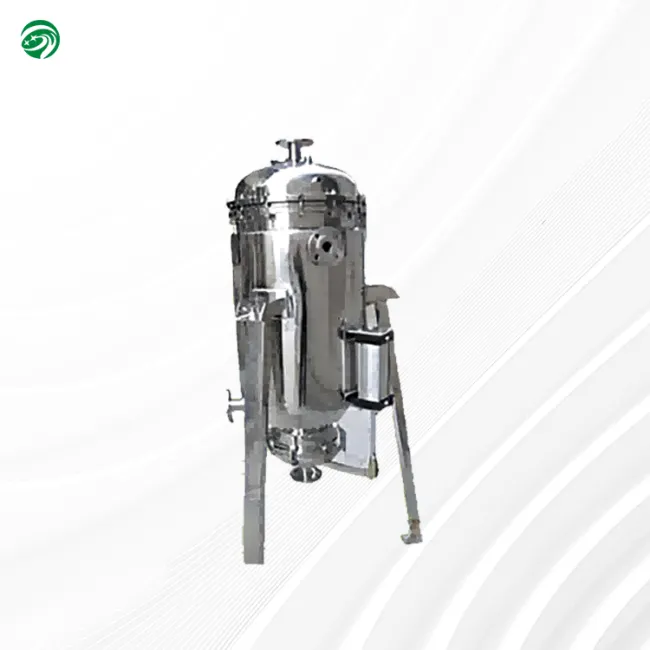

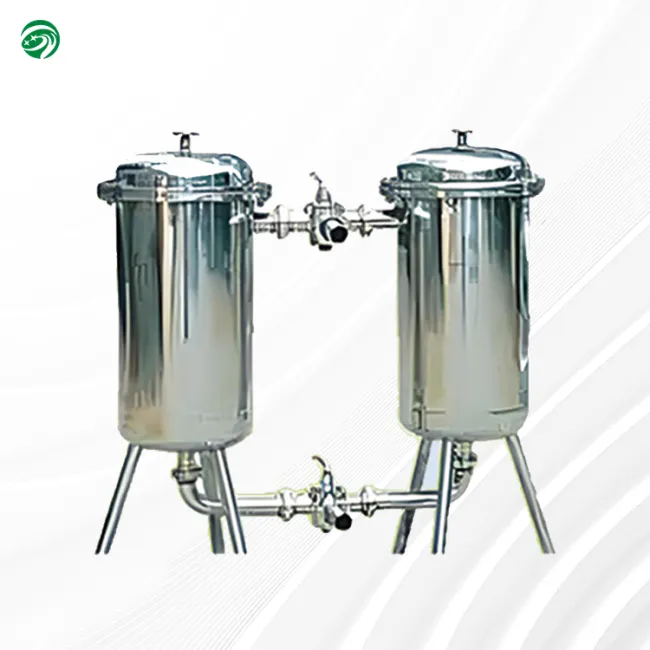

A microporous filter, commonly abbreviated as MF, is a broad term for membrane filtration technology with pore sizes ranging from 0.2 to 1 μm. Developed as a cutting-edge filtration solution in recent years both domestically and internationally, it effectively removes particles and bacteria larger than 0.1 μm from liquids and gases. Its key advantages include high filtration precision, rapid filtration rates, minimal adsorption, no media shedding, resistance to acid and alkali corrosion, and straightforward operation.
The industries encompass pharmaceuticals, chemicals, electronics, beverages, fruit wine production, biochemical water treatment, and environmental protection, among others.
| Inlet and outlet connection methods | Flange connection, quick-release connector connection, threaded connection |
| Filtration accuracy (um) | 0.1, 0.2, 0.45, 1-60 |
| Filtration capacity (t/h) | 0.5-100 |
| Filter element length (m/m) | 250-1000 |
| Working pressure (Mpa) | 0.1-0.6 |
| Temperature range (℃） | 1-80 |
| Filter element material | Polypropylene (series microporous filters can filter out most of the particles, so they are widely used in fine filtration and sterilization processes. The filter cartridges are 1 core, 3 cores, 5 cores, 7 cores, 9 cores, 11 cores, 13 cores, 15 cores, 21 cores, etc. The length of the folded filter element is 10, 20, 30, 40. The filter element materials are polypropylene, polytetraethylene, and acetate fiber) |
| Filter pore size | 0.1um, 0.22um, 1um, 3um, 5um, 10um Divided into hydrophobic (for gas) and hydrophilic (for liquid) filter elements, which can be selected according to needs |
