| Working pressure | 0.1-1.0MPa |
| Material | 304, 316L, carbon steel |
| Temperature range | 1-260℃ |
| Filter accuracy | 1-100um |
| Filter capacity | 0.2-300th |
| Filter bag length | 430/810m/m |

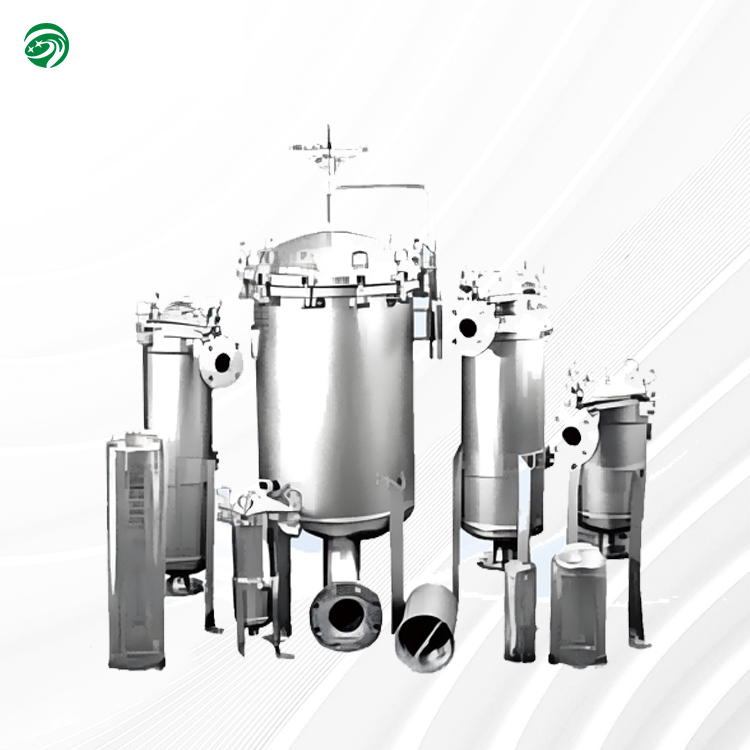

Bag filter is a new type of filtration equipment developed in recent years at home and abroad. The filter is supported by a metal mesh basket inside the filter. The liquid flows in from the inlet, flows out from the outlet after being filtered by the filter bag, and the impurities are intercepted in the filter bag. The liquid medium of solid-liquid separation is filtered. The bag filter can filter out particles larger than 1um in the liquid. It has the advantages of high filtration accuracy, fast transition speed, no medium shedding, acid and alkali corrosion resistance, high temperature resistance, and easy operation. The filtered particles are retained in the filter bag to ensure that the downstream liquid will not be contaminated when the filter bag is replaced. It is now widely used as necessary equipment in industries such as medicine, chemical industry, electronics, beverages, fruit wine, biochemical water treatment, and environmental protection.
Bag filters have large processing capacity, small volume, and large dirt holding capacity. Based on the working principle and structure of the bag filtration system, it is convenient and quick to replace the filter bag, and the filter machine does not need to be cleaned, saving labor and time.
The probability of side leakage of the filter bag is small, which effectively guarantees the filtration quality.
Bag filtration can carry a greater working pressure, with small pressure loss, low operating costs and obvious energy-saving effect.
The filtration accuracy of filter bags is constantly improving, and currently reaches 0.5um.
Bag filtration has a wide range of applications, flexible use and various installation methods.
Bag filter: single bag filter, multi-bag filter, duplex bag filter.
Inlet and outlet connection method: flange connection, quick-release connector connection, threaded connection bag filter.
Inlet and outlet water inlet method: top entry, side entry, bottom entry, bottom opening bag filter.
Filter bag material: stainless steel filter mesh, polypropylene/polyester or tetrafluoro nylon and other material filter bags (resistant to high temperature and high pressure).
Filter bag specifications: No. 1 bag (430mmx180mm), No. 2 bag (810mmx180mm).
Number of filter cartridge bags: single bag, 3 bags, 4 bags, 6 bags, 8 bags, 10 bags, 12 bags.
Water treatment: system purification in cooling devices, oil field water injection, filtration without well fluid, power plant condensate purification, ion exchange resin recovery, wastewater, pure water, cooling water, seawater desalination.
Chemicals: catalyst recovery, carbon removal ink and filter aids.
Adhesives: removal of acrylic adhesive gel, removal of PVC agglomerates, hot melt polymer filtration.
Lubricating oil: filtration before lubricating oil packaging, filtration of lubricating oil injection filter.
Automobile manufacturing: electrophoretic paint filtration, hardener filtration, solvent filtration, filtration before packaging.
Aluminum manufacturing: phosphate tank sediment removal filtration, precious metal recovery.
Electronic industry: printed circuit boards, electroplating liquid, chip processing liquid, high-purity water, membrane filtration pre-treatment.
Fine chemicals: detergent filtration, coconut oil refining and carbon removal.
Petrochemical: oil recovery, oil and natural gas desulfurization and amine filtration, oil, amine, paint, resin, ink, chemicals, catalyst recovery, acid, alkali, solvent. Food and beverage: beverages, beer, drinking water, cleaning agents, sugar. Pharmaceutical industry: active ingredient recovery, vitamin extract, protein, activated carbon recovery.
| Inlet and outlet connection methods | Flange connection, quick-release connector connection, threaded connection |
| Filtration accuracy (um) | 0.1, 0.2, 0.45, 1-60 |
| Filtration capacity (t/h) | 0.5-100 |
| Filter element length (m/m) | 250-1000 |
| Working pressure (Mpa) | 0.1-0.6 |
| Temperature range (℃） | 1-80 |
| Filter element material | Polypropylene (series microporous filters can filter out most of the particles, so they are widely used in fine filtration and sterilization processes. The filter cartridges are 1 core, 3 cores, 5 cores, 7 cores, 9 cores, 11 cores, 13 cores, 15 cores, 21 cores, etc. The length of the folded filter element is 10, 20, 30, 40. The filter element materials are polypropylene, polytetraethylene, and acetate fiber) |
| Filter pore size | 0.1um, 0.22um, 1um, 3um, 5um, 10um Divided into hydrophobic (for gas) and hydrophilic (for liquid) filter elements, which can be selected according to needs |
