| Brand | Xinguanyu |
| Model | GY-UVC |
| System pressure resistance | 0.1-0.4MPa |
| Lamp tube | Domestic/Imported |
| Material | PVC |
| Casing material | Quartz |
| Place of shipment | Hebei |
| Ballast | Electronic ballast, adjustable power |
| Status indicator | Sound and light alarm (optional) |
| Application area | Aquaculture |
| Sales range | Nationwide |
| Custom processing | Support |
Ultraviolet disinfection is increasingly widely used in aquaculture and ornamental fish farming. In the process of aquaculture, the growth of algae in the water and the bacteria and viruses that cause fish diseases can die and disintegrate within seconds under strong ultraviolet radiation. In water bodies purified by ultraviolet disinfection, more than 99% of bacteria and viruses will be killed, thereby reducing the disease rate of fish, increasing breeding density and yield, and improving the ornamental fish.

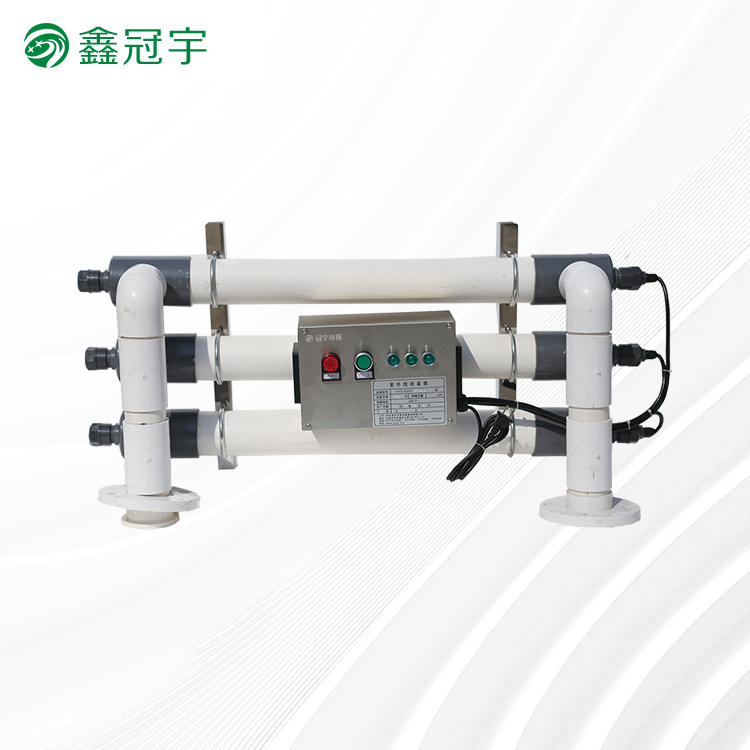

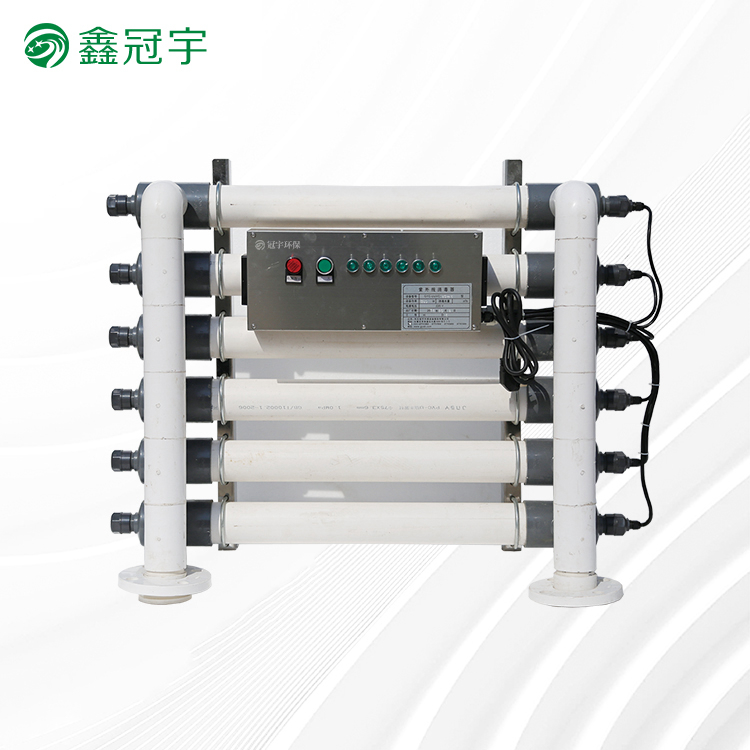

This product uses high-quality PVC pipes specially customized for aquaculture and molded connections, pressure-bearing, and line main accessories. It has the characteristics of corrosion resistance, anti-aging, acid and alkali resistance during the use of aquatic products (seawater)
It is inexpensive, economical and practical. Compared with 316L stainless steel equipment, it can save 20% of investment
Select imported lightsources or Philips original UV-C lamps
Use high-transmittance and high-purity quartz sleeves to ensure that the ultraviolet light transmittance is above 90%
No chemical reaction, no secondary pollution
The inlet and outlet can be connected by thread or flange, and the diameter can be customized according to user requirements
Working status indicator light, with sound/light alarm function (optional)
Lamp: imported from the United States lightsources/Philips/high-quality domestic (optional) Lamp life 12000 hours
Ballast: domestic, imported according to user needs
System withstand voltage: 0.1-0.4Mpa
| Model | Power | Water volume | Diameter |
| GY-UVC-20-360W | 360W | ≤10m³/h | DN50 |
| GY-UVC-20-480W | 480W | ≤15m³/h | DN65 |
| GY-UVC-20-600W | 600W | ≤20m³/h | DN80 |
| GY-UVC-20-840W | 840W | ≤25m³/h | DN100 |
| GY-UVC-20-1050W | 1050W | ≤30m³/h | DN100 |
| GY-UVC-20-1280W | 1280W | ≤40m³/h | DN100 |
| GY-UVC-20-1600W | 1600W | ≤50m³/h | DN150 |
| GY-UVC-20-1920W | 1920W | ≤60m³/h | DN150 |
| GY-UVC-20-2560W | 2560W | ≤80m³/h | DN150 |
| GY-UVC-20-3200W | 3200W | ≤100m³/h | DN150 |
