| Equipment model | GYY-AOP |
| Total power | 3.5-26.5kw |
| Equipment diameter | DN100-350 |
| Total water volume of the swimming pool | 120-160 |
| Circulation flow | 40-600m³/h |
| Cycle time required | 3-4h |

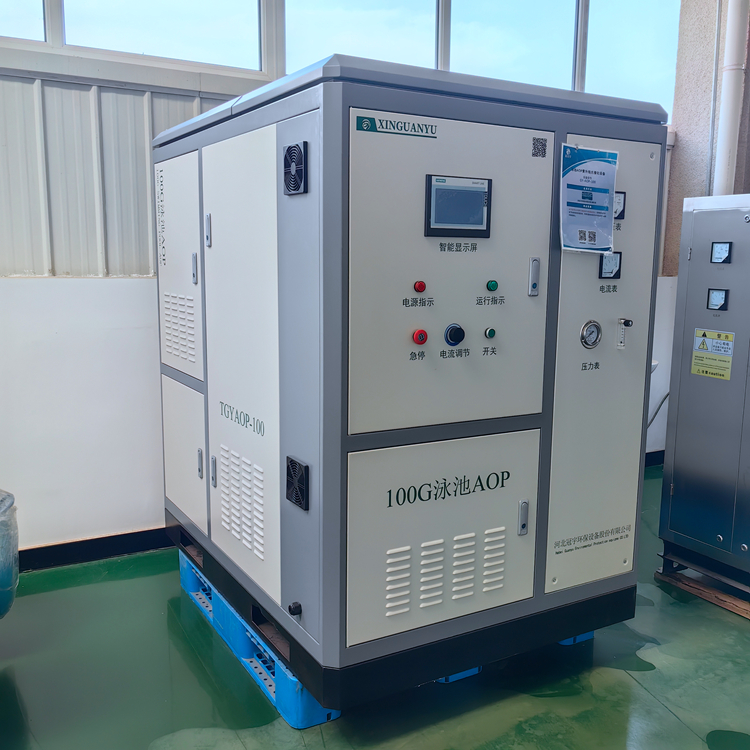

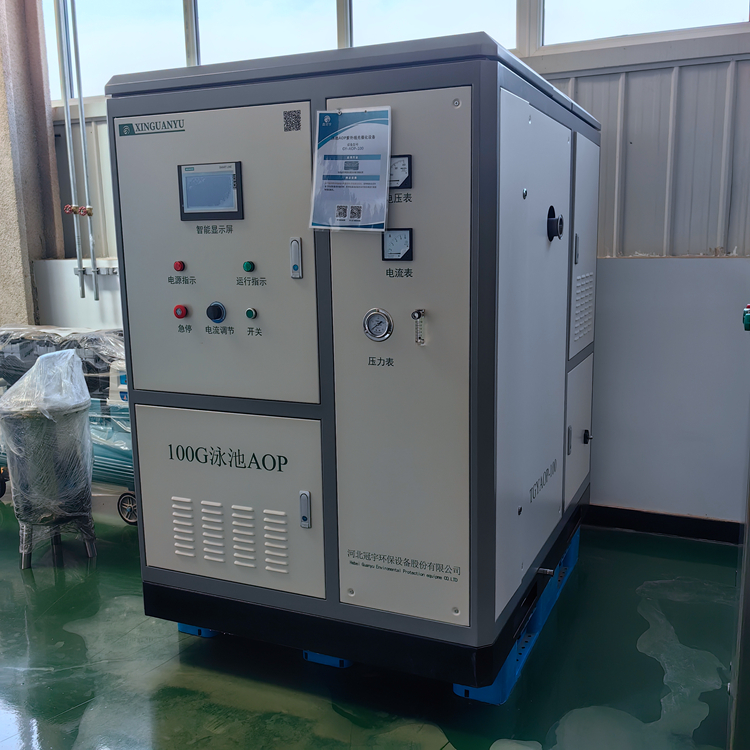

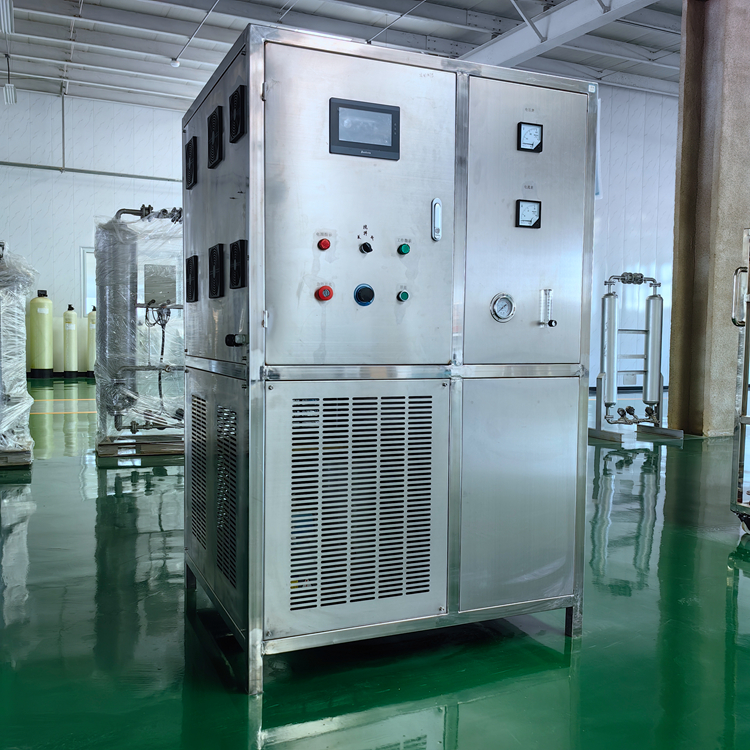

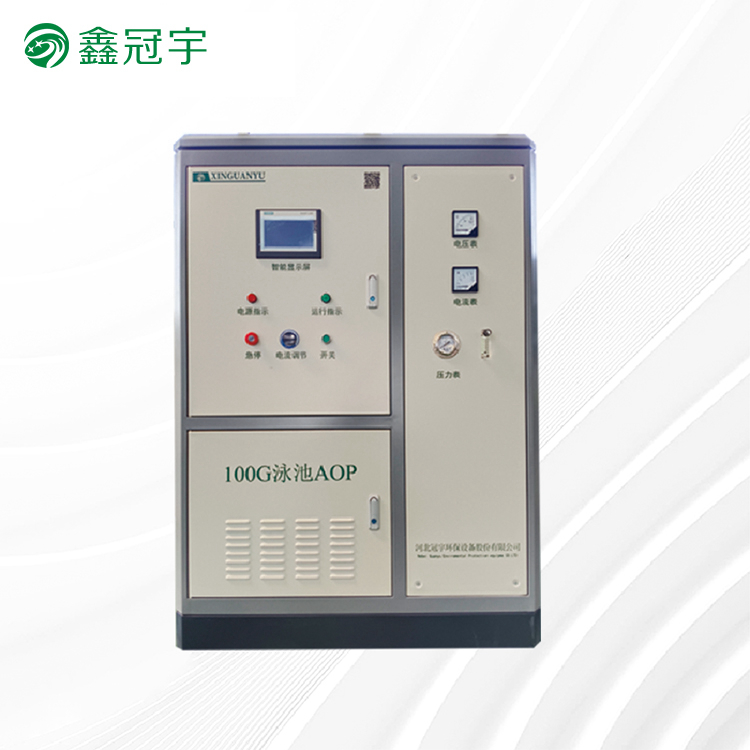

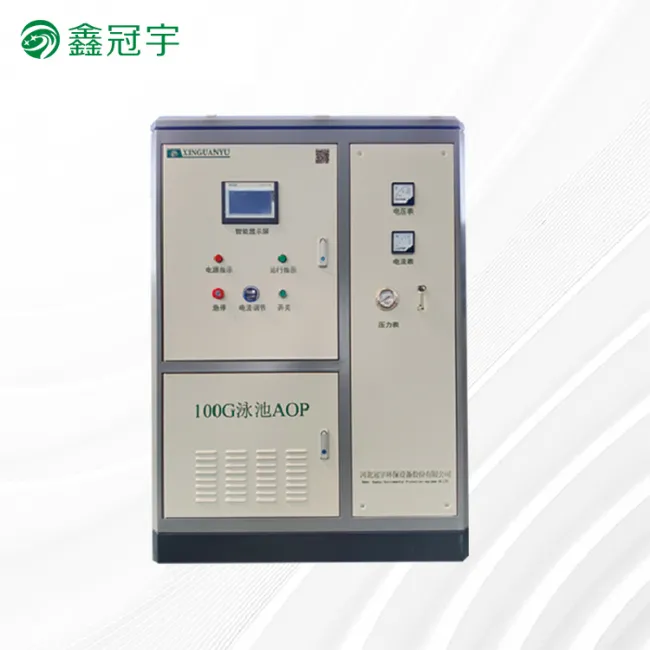

Guanyu Company combines advanced technologies at home and abroad, adopts UV, photocatalysis, 03, advanced oxidation, high-efficiency mixing, refrigeration and other technologies, and develops and produces a new generation of products AOP products (the oxidation process with hydroxyl radicals as the main oxidant in the water treatment process is called AOPS, abbreviated as AOP). This product uses UV nano-photocatalysis + ozone technology + advanced oxidation technology to form hydroxyl radicals (0H radical) under a special reaction environment, and uses hydroxyl radicals to perform efficient advanced oxidation of organic matter in water. And thoroughly and efficiently decompose organic matter, microorganisms, pathogens, diseases, sulfides, phosphides and other poisons in the water to meet the requirements of water deodorization, disinfection, sterilization and purification. The treated water quality meets the relevant national standards. AOP products solve the problems of a single water treatment method and win the favor of the market and users with its unique technical combination advantages.
Easy installation and saves floor space.
Reliable cooling system: The equipment's cooling system and air source system have controllable and adjustable temperatures
High ozone production efficiency and concentration: Ozone concentration is greater than 120mg/L.
High-efficiency mixing, micro-nano bubbles, high solubility, large diffusion coefficient of solutes and dispersed phase storage capacity.
High-strength special ultraviolet technology, instantly produces hydroxyl free radicals.
Nano-efficient catalysis, instant decomposition and oxidation of organic matter.
Rapid, efficient and non-selective reaction. The treated water can achieve rapid oxidation of organic matter at the moment of entering and leaving the equipment. The effluent COD meets the new national emission standards or the requirements of recycled water reuse.
Organic matter can be completely degraded into carbon dioxide, and water will not produce secondary pollution. It effectively increases the transmission speed and contact time of ozone in the water body to enhance the utilization efficiency of ozone, saves ozone dosage and oxidation time, and thus greatly saves the investment and operation cost of ozone equipment
The filling of the fixed bed heterogeneous catalyst bed and the development of loaded rare metal heterogeneous catalysts strengthen the gas-liquid two-phase mass transfer and increase the reaction speed. It has the characteristics of long replacement cycle and small filling amount, which can effectively increase the utilization rate of ozone by more than 15%.
The reaction system also has auxiliary functions such as sterilization, anti-scaling, decolorization, and COD removal.

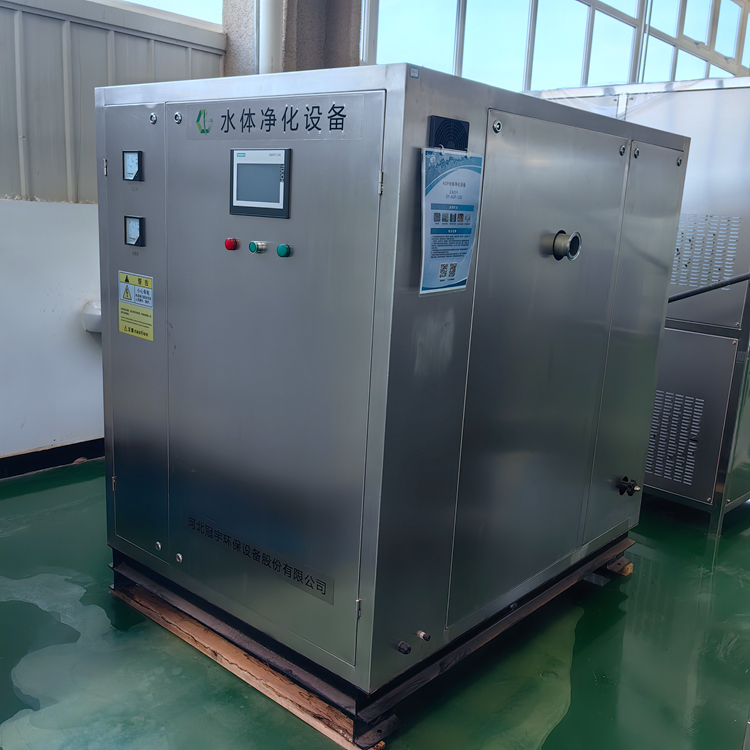

Guanyu AOP water purification equipment adopts UV photocatalysis + ozone + advanced oxidation technology. The product can be applied to water treatment systems such as secondary water supply, river management, black and odorous water bodies, swimming pools, surface water, landscape water, and aquaculture.
High concentration ozone system
130mg/, ensuring that the swimming pool water quality is stable and meets the standard for a long time.
Customized soda and water dual cooling intelligent system
The air source cooling system ensures that the ozone intake is constant temperature and dry, and is not affected by external weather changes and ambient temperature, ensuring that the ozone continues to operate at a high concentration; cooling water cooling system, saving cooling water. Using a 300G ozone saves nearly 10,000 yuan of cooling water each year, and it has automatic setting of air source temperature and cooling water temperature.
High efficiency mixing system
Customized anti-corrosion double circulation mixing system, nano-level micro bubble cutting high efficiency double mixing system, special high efficiency jet mixing system, multiple protection + ozone mixing tank system and other 7 processes are efficiently combined to make the ozone mixing efficiency reach 70-80%, and eliminate the destruction system and mixing tank system in the swimming pool process. According to the 2000 cubic swimming pool, the ozone destroyer alone can save a one-time investment of 60,000 to 80,000 yuan (2000 cubic water capacity: 6 hours cycle: 1/4 cubic water volume: 60x4=240 cubic stainless steel water tank), and save a lot of installation space.
High-concentration customized gas production system
Imported medical-grade molecular sieve, outlet concentration 93%. The equipment has no continuous heating equipment temperature, constant oxygen temperature, modular structure, compact structure, saving air compressor, cold dryer, drying equipment, air pressure tank, etc. space and installation costs. High-intensity, high-power customized nano-high-efficiency photocatalytic system has 3-5 times the efficacy of ordinary photocatalytic equipment, with self-cleaning function, and the sterilization and purification effect of hydroxyl radicals is several times more than that of ozone equipment and ultraviolet equipment alone.
Intelligent customizable control system
Intelligent control system, Internet of Things intelligent control system can be customized according to user and working conditions, and can be linked with the front and back links of the system. And it can achieve one-button start and unattended.
Widely used in various hot springs, swimming pools, paddling pools, water parks, especially suitable for sterilization of infant swimming pool water.
Using UV photocatalytic technology + ozone advanced oxidation technology + ozone high-efficiency mixing technology, no chemical agents are added during the sterilization process, eliminating the harm of traditional disinfection to human skin, eyes, and respiratory system.
Because no chemical agents are added during the circulating water treatment process, the daily water replenishment and backwashing times are reduced, saving 50% water.
Efficiently control microorganisms, the sterilization effect is 3-5 times that of a single product.
Improves the water quality while improving the air quality of the space, increasing the comfort of swimmers.
Reduces investment in other auxiliary equipment, saves installation space costs, installation time costs, and later maintenance costs.
Customized products according to customers' high-standard needs, using various detection technologies, Internet of Things intelligent control and other technologies to effectively improve service levels and increase swimming pool charges.
| Public adult, competition semi-standard, standard pool swimming pool selection table | |||||
| Equipment model | Total water volume of the swimming pool m³ | Time required for one cycle | Equipment diameter mm | Circulation flow m³/h | Total power kw |
| GYY-AOP-20 | 120-160 | 3-4h | DN100 | 40 | 3.5 |
| GYY-AOP-30 | 180-250 | 3-4h | DN125 | 60 | 5 |
| GYY-AOP-60 | 350-480 | 3-4h | DN150 | 120 | 7 |
| GYY-AOP-100 | 600-800 | 3-4h | DN200 | 200 | 9.5 |
| GYY-AOP-200 | 1200-1600 | 3-4h | DN300 | 400 | 15.5 |
| GYY-AOP-300 | 1800-2400 | 3-4h | DN350 | 600 | 26.5 |
| Baby pool selection | |||||
| Equipment model | Total water volume of the pool m³ | Time required for one cycle | Equipment diameter mm | Circulation flow m³/h | Total power kw |
| GYY-AOP-20 | 40-80 | 1-2h | DN100 | 40 | 3.5 |
| GYY-AOP-30 | 60-120 | 1-2h | DN125 | 60 | 5 |
| GYY-AOP-60 | 120-240 | 1-2h | DN150 | 120 | 7 |
| GYY-AOP-100 | 200-300 | 1-2h | DN200 | 200 | 9.5 |
| GYY-AOP-200 | 400-600 | 1-2h | DN300 | 400 | 15.5 |
| Private swimming pool selection table | |||||
| Equipment model | Total water volume of the swimming pool m³ | Time required for one cycle | Equipment diameter mm | Circulation flow m³/h | Total power kw |
| GYY-AOP-20 | 250-300 | 6-8h | DN100 | 45 | 3.5 |
| GYY-AOP-30 | 350-450 | 6-8h | DN125 | 60 | 5 |
| GYY-AOP-60 | 700-900 | 6-8h | DN150 | 120 | 7 |
| GYY-AOP-100 | 1200-1500 | 6-8h | DN200 | 200 | 9.5 |
| GYY-AOP-200 | 2500-3000 | 6-8h | DN300 | 400 | 15.5 |
