| Product model | GY-18 |
| Rated evaporation capacity | 26 kg/h |
| Drain pipe diameter | DN15 |
| Distribution cabinet size | 300*260*550mm |
| Pump power supply | 380V |
| Power wiring cross-sectional area mm² | 6mm² |
| Rated working pressure | 0.2~0.4Mpa |
| Electric heating power | 18kw |
| Water inlet pipe diameter | DN15 |
| Steam pipe diameter | DN15 |
| Overall dimensions | 300*950mm |
| Pump power | 0.75kw |
| Saturated steam temperature | 121~151°C |
| Working voltage | 380V |

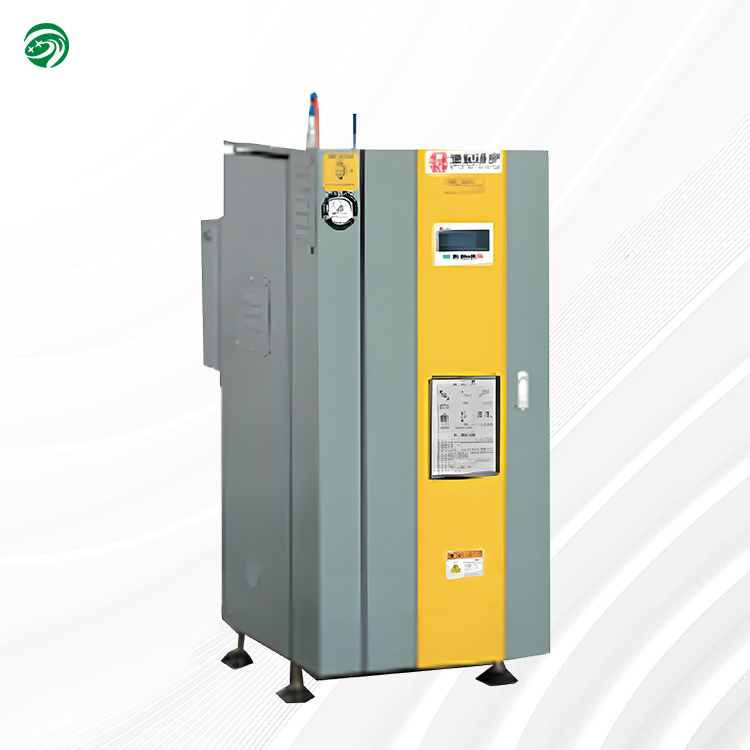

This product is energy-efficient and eco-friendly, with a compact size, fast response speed, and stable performance. It adopts multiple fully automatic control functions for pressure, stability, and liquid level—all models are equipped with automatic water-filling functions, making them professionally suitable for hospitals and pharmaceutical units.
- **High-performance electric boiler**: This electric heating boiler is newly designed in accordance with the national JB/T10393 standard, drawing on the excellent performance of similar European products. It offers various specifications ranging from 18KW to 1400KW, catering to your different application scenarios and needs.
- **Slim vertical structure**: The slim vertical design allows the boiler to quickly and efficiently reach the set working temperature and pressure in a very short time; even during the water replenishment process, there will be no fluctuations in temperature or pressure.
- **Excellent steam-water separation performance**: The unique built-in steam-water separator solves the problem of steam carrying water in common similar products—this is also the most prominent feature that distinguishes it from other domestic similar products.
- **Advanced computer control (optional)**: All internal pipelines and control systems of the electric boiler are pre-connected before leaving the factory. With a one-step foolproof control system, you only need to press a button to enable the boiler’s fully automatic operation, greatly facilitating your use.
- **Top/bottom vertical arrangement of electric heating elements**: The vertical arrangement of electric heating elements (top and bottom) allows scale attached to the elements to quickly peel off and fall off under the effect of thermal expansion and contraction, then be discharged through the sewage pipe. This effectively extends the service life of the electric heating elements.
| Product model | GY-18 | GY-27 | GY-36 | GY-45 | GY-54 |
| Rated evaporation capacitykg/h | 26 | 40 | 50 | 65 | 77 |
| Electric heating power kw | 18 | 27 | 36 | 45 | 54 |
| Working voltage | 380V | 380V | 380V | 380V | 380V |
| Rated working pressure | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa |
| Saturated steam temperature | 121-151℃ | 121-151℃ | 121-151℃ | 121-151℃ | 121-151℃ |
| Power wiring cross-sectional area mm² | 6 | 6 | 12 | 12 | >25 |
| Water pump power | 0.75kW | 0.75kW | 0.75kW | 0.75kW | 0.75kW |
| Water pump power supply | 380V | 380V | 380V | 380V | 380V |
| Overall dimensions mm | 300x950 | 300x950 | 300x950 | 400x1050 | 400x1050 |
| Power distribution cabinet size mm | 300x260x550 | 300x260x550 | 300x260x550 | 350x300x600 | 350x300x600 |
| Steam pipe diameter mm | DN15 | DN15 | DN20 | DN20 | DN20 |
| Drainage pipe diameter mm | DN15 | DN15 | DN20 | DN20 | DN20 |
| Water inlet pipe diameter mm | DN15 | DN15 | DN20 | DN20 | DN20 |
| Product model | GY-60 | GY-70 | GY-80 | GY-90 | GY-100 |
| Rated evaporation capacitykg/h | 86 | 100 | 115 | 130 | 145 |
| Electric heating power kw | 60 | 70 | 80 | 90 | 100 |
| Working voltage | 380V | 380V | 380V | 380V | 380V |
| Rated working pressure | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa |
| Saturated steam temperature | 121-151℃ | 121-151℃ | 121-151℃ | 121-151℃ | 121-151℃ |
| Power wiring cross-sectional area mm² | >25 | 50 | 50 | 80 | 80 |
| Water pump power | 0.75kW | 0.75kW | 0.75kW | 0.75kW | 0.75kW |
| Pump power supply | 380V | 380V | 380V | 380V | 380V |
| Overall dimensions mm | 400x1050 | 600x1150 | 600x1150 | 600x1150 | 600x1150 |
| Distribution cabinet dimensions mm | 350x300x600 | 400x320x650 | 400x320x650 | 400x320x650 | 400x320x650 |
| Steam pipe diameter mm | DN20 | DN25 | DN25 | DN32 | DN32 |
| Drainage pipe diameter mm | DN20 | DN25 | DN25 | DN32 | DN32 |
| Water inlet pipe diameter mm | DN20 | DN25 | DN25 | DN32 | DN32 |
